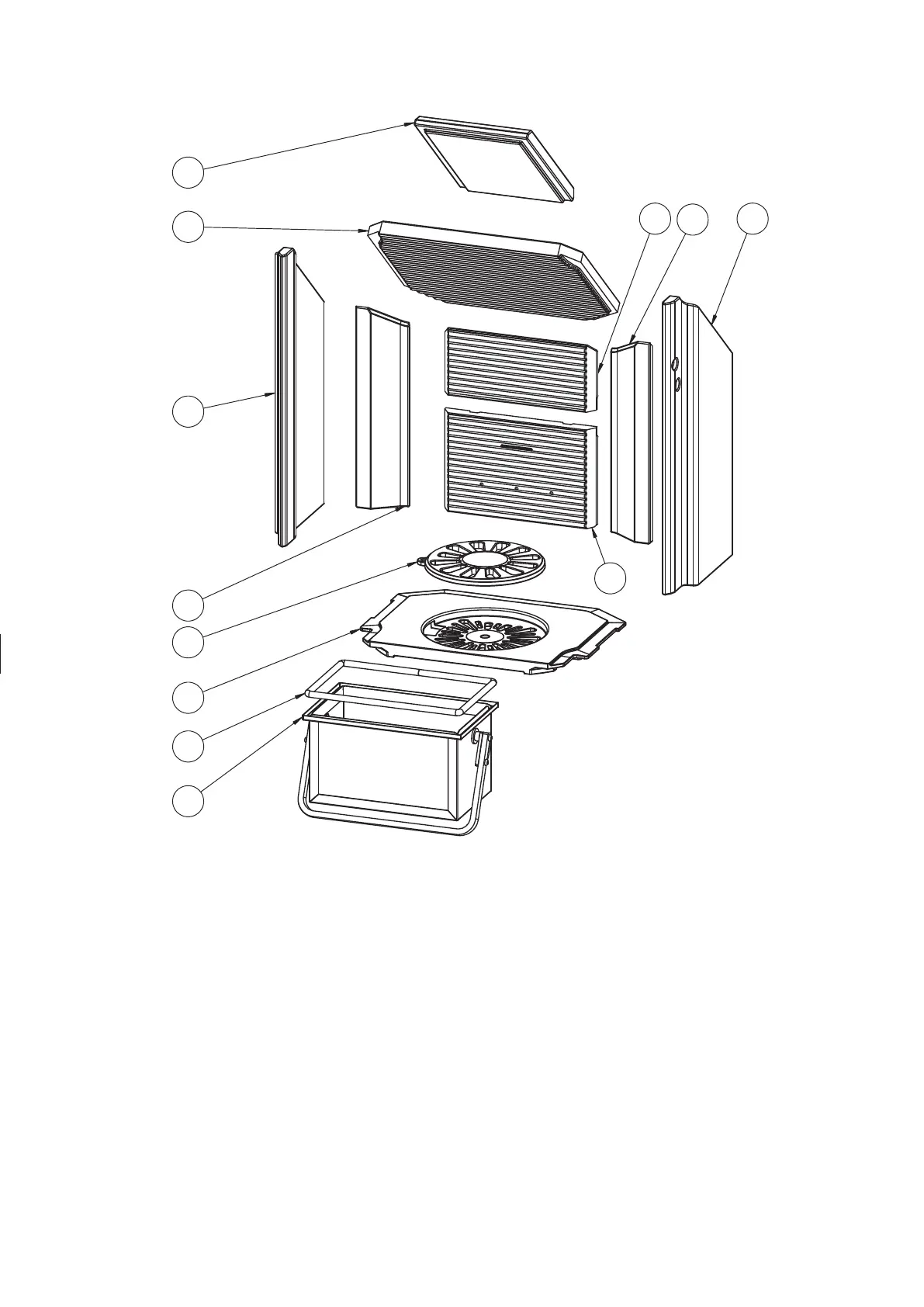

1.20 Scan-Line 900 Parts - Inside fire chamber
4
5
6 2
1
7
12
10
9
8
3
11
Pos. No. Name Qty.
1 0023-006028 Vermiculite, rear, bottom 1
2 0023-006261 Vermiculite, side, right 1
3 0023-006465 Vermiculite, side, left 1
4 0023-011495 Baffle 1
5 0023-012044 Baffle, small 1
6 0023-012060 Vermiculite, rear, top 1
7 0023-012061 Vermiculite, rear, right 1
8 0023-012062 Vermiculite, rear, left 1
9 0030-0201 Grate, Ø195 mm 1
10 0030-006009 Casted bottom 1
11 0023-3017 Gasket L = 850 1
12 4018-0053 Ash container 1
