Initial setup
In this section we will get your Sim Pedals
Ultimate+ up and running. Detailed soware
and mechanical adjustments are explained
later in this manual.
Mounting the pedals
The base of each pedal has 4 mounting slots. The maximum
bolt size for these slots is M6 (6 millimeter). Possible
mounting solutions are 80/20 aluminium beams, double MDF
floorboards or the Sim Pedals Baseplate.
Keep in mind that the Sim Pedals Ultimate+ may be loaded
with 140kgs at the brake pedal, when applying these loads

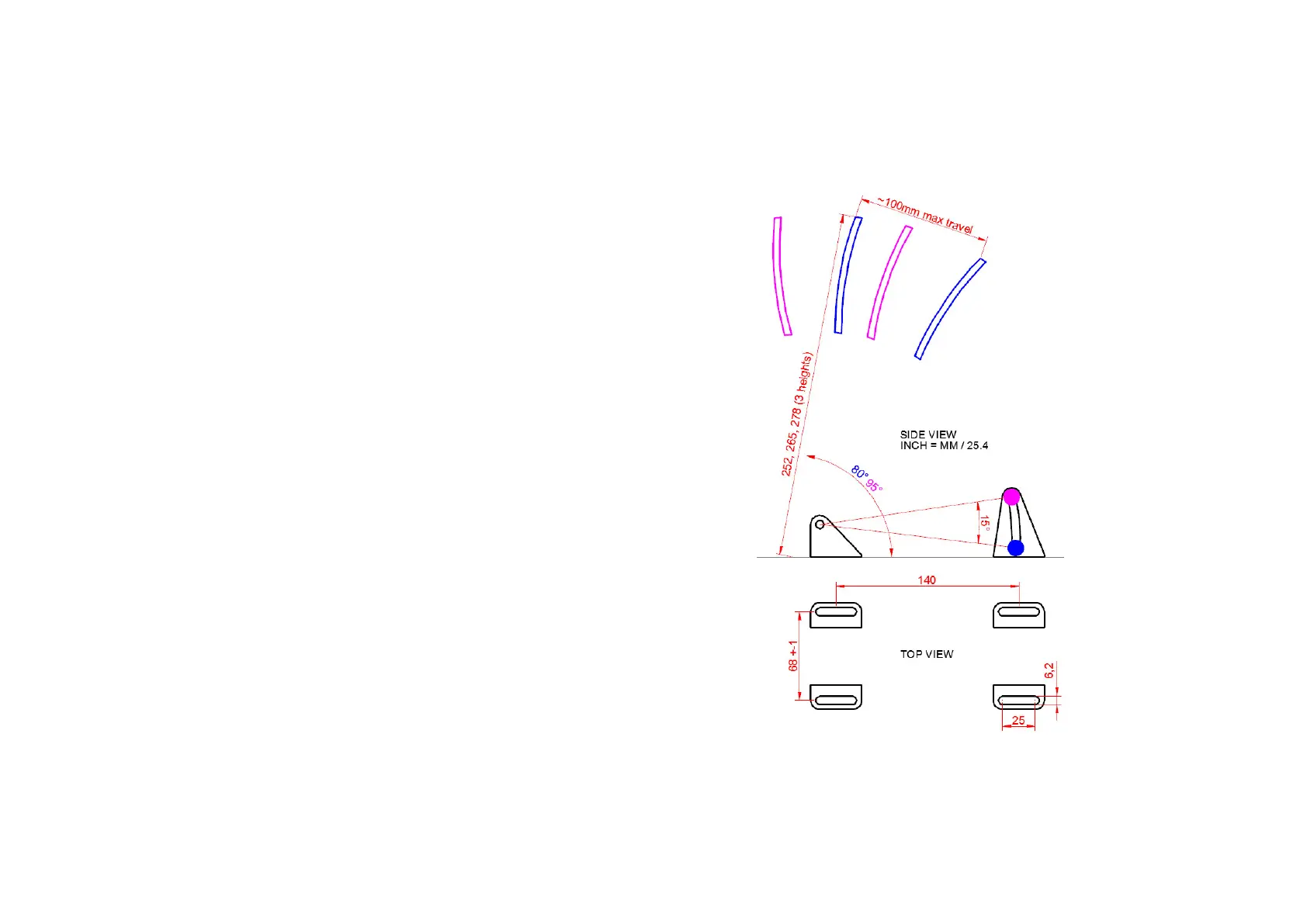

you must install the pedals on a very rigid base. See the
image for the base and profile dimemsions of the Sim Pedals.
All dimensions are in millimeters unless stated otherwise.
