Voltage Divider Value * Actual Battery Voltage / Voltage Measured by Power Module = Correct
Voltage Divider Value
Default parameter may return inaccurate voltage. Edit Voltage divider according to the following formula
to fix it.
Enter the new Voltage Divider according to your calculation and reboot the flight controller. Measured
voltage should be accurate now.
Battery Monitor 2 Calibration
Battery Monitor 2 corresponds to POWER2 port.

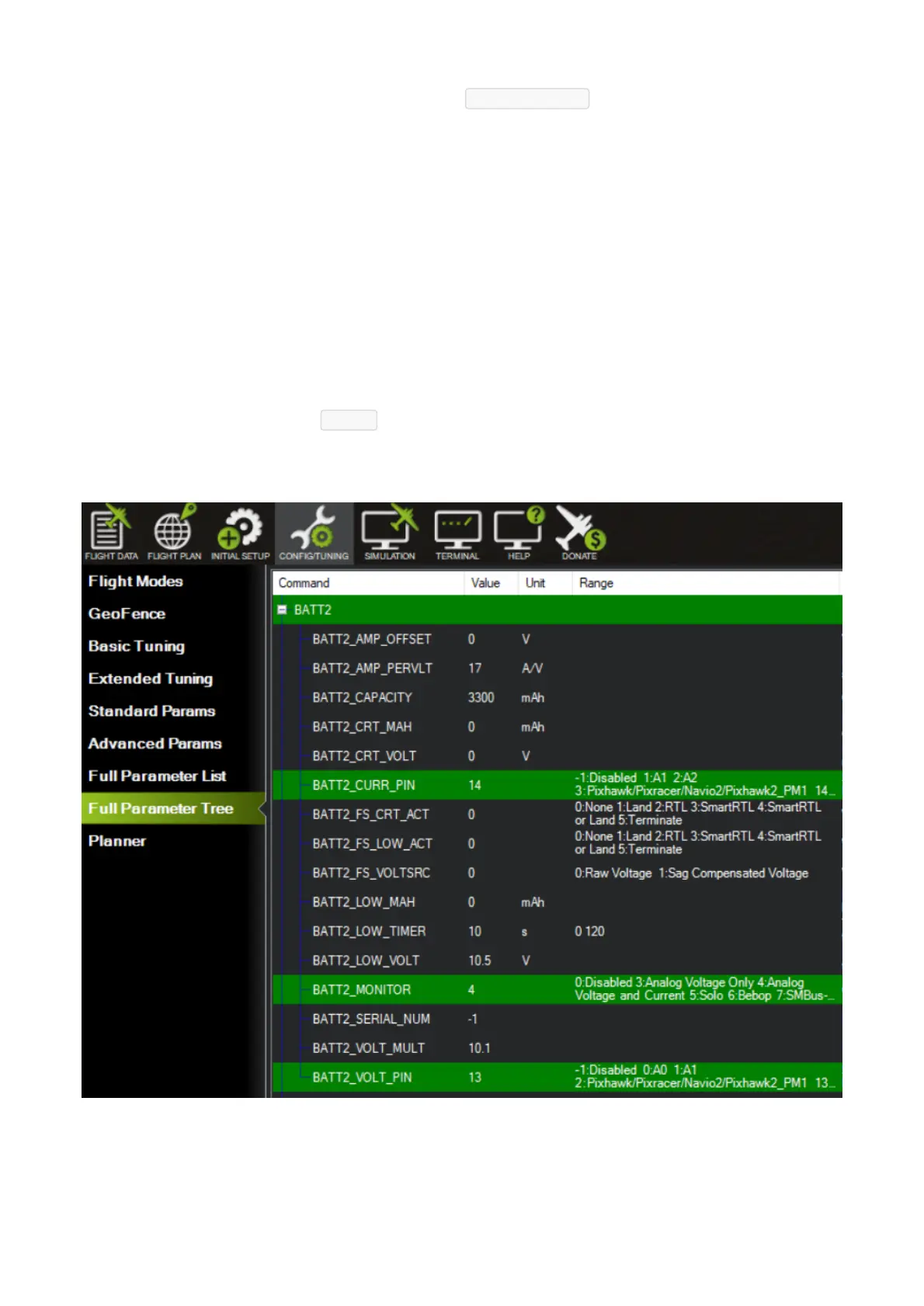

In the "Configuration > Full Parameter Tree" screen, change the following parameters to enable battery
monitor 2:
Enter the properties your module can measure, the type of module, the type of flight controller, and the
battery capacity. Calculation for voltage divider is same as Battery monitor 1.
