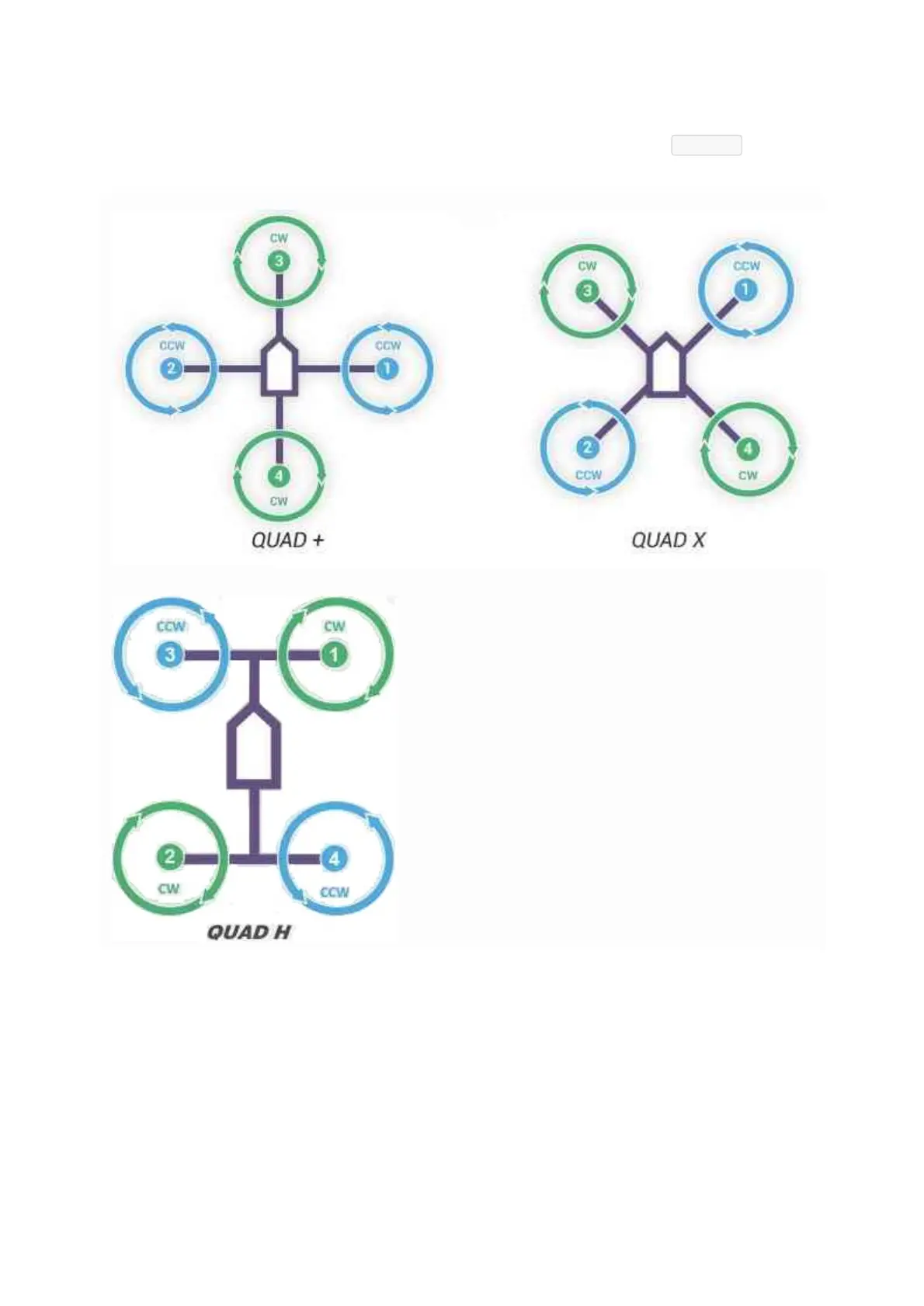

The diagrams belo
w show motor or
der for each frame type. The numbers indicate which output pin from
the flight controller should be connected to each motor/pr
opeller. The propeller dir
ection is shown in green
(clockwise, CW) or blue (counter-clockwise, CCW) Connect the cable fr
om ESC to the
MAIN OUT
port on The
Cube.
3
5
Table of Contents
Peripheral Connection
2
Install SD Card
2
Power Supply
2
Sensors Connection
6
Mounting the GPS Module
6
RC System Connection
7
Telemetry Connection
7
Setup Ground Control Station
8
Select the Appropriate Ground Control Station
8
Install Firmware on the Cube
8
Download Mission Planner
9
Connect Mission Planner to the Cube
9
Loading Firmware to the Cube
10
Basic Hardware Calibration and Parameter Setting
11
First Flight
29
