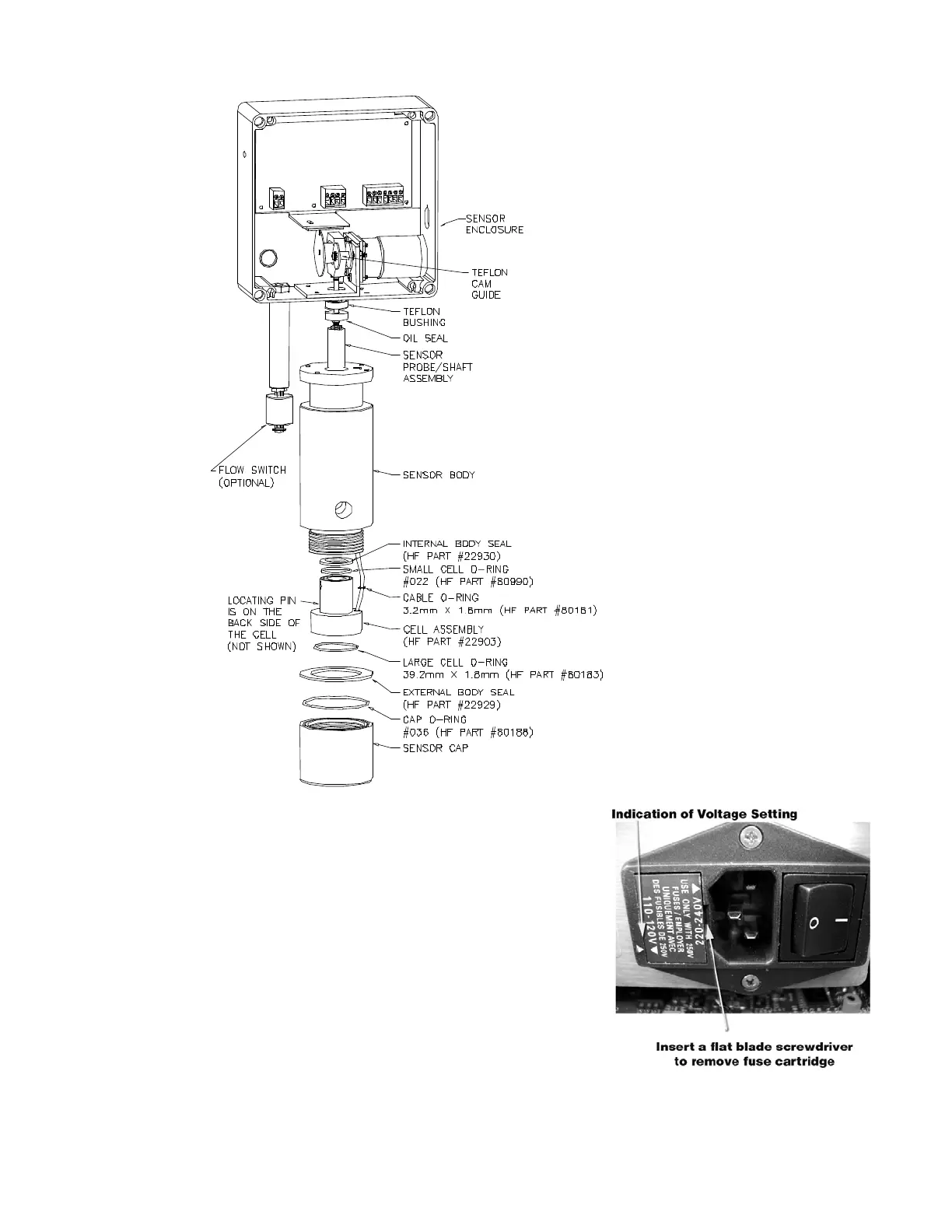

Figure 10: Sensor – Exploded View
9.3 Analyzer Fuse
The analyzer fuse located in a cartridge on the cord
receptacle in the back of the instrument. To gain access,
remove the four access cover screws and remove the
power cord. Insert a screwdriver into the slot and pry to
remove the cartridge. Be certain to match the desired
voltage with the indication arrow when reinserting the
cartridge.
