1.2.3. HF-LPT230 Mechanical Size
The size of HF-LPT230-1 and HF-LPT230-0 is the same. HF-LPT230-1 does not have IPEX connector.
HF-LPT230 modules physical size （Unit: mm） as follows:

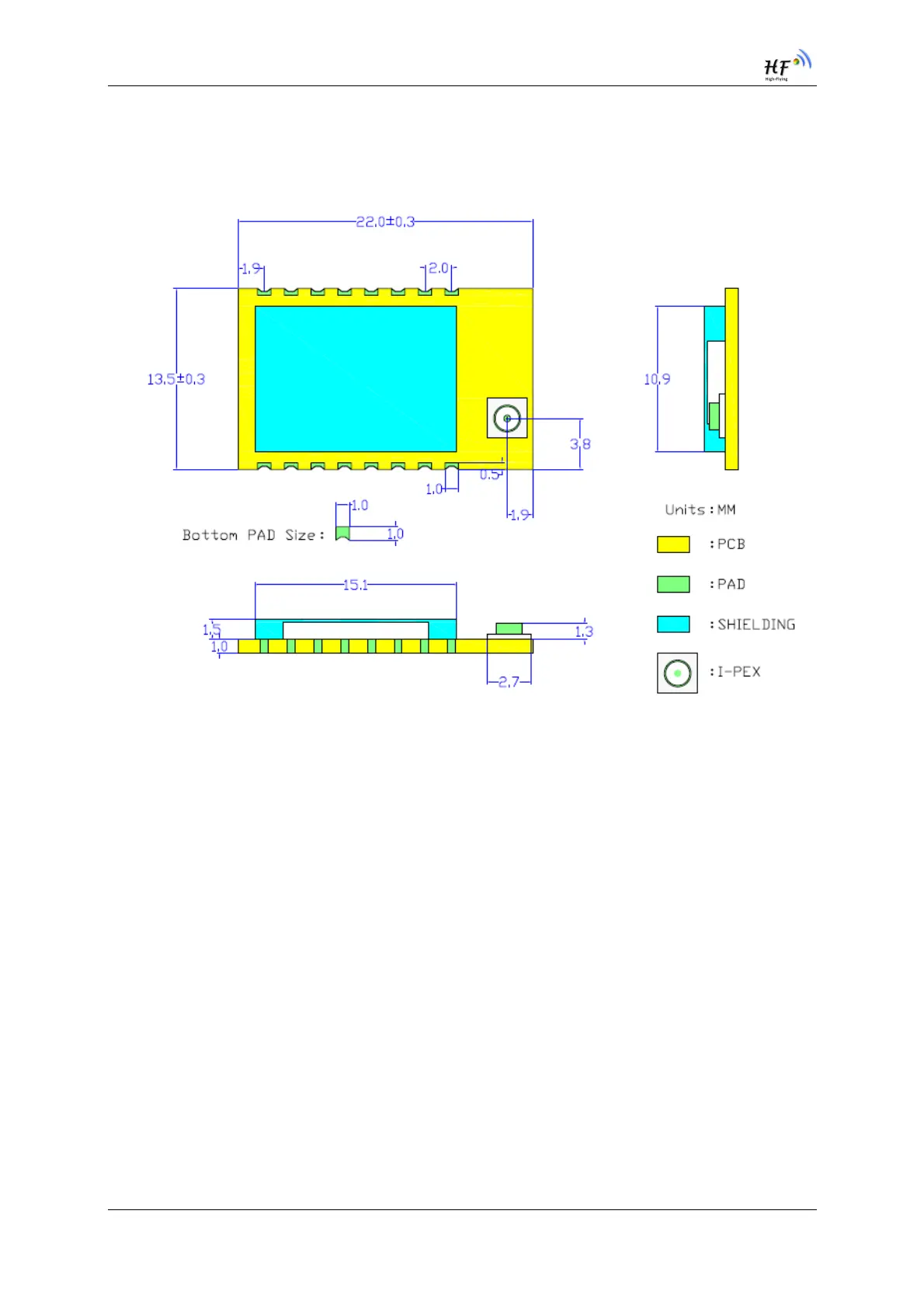

Figure 3. HF-LPT230 Mechanical Dimension
