parameters successfully" prompt window, and display all the current parameter values of the
millimeter wave sensor, click "OK" to close the prompt window.

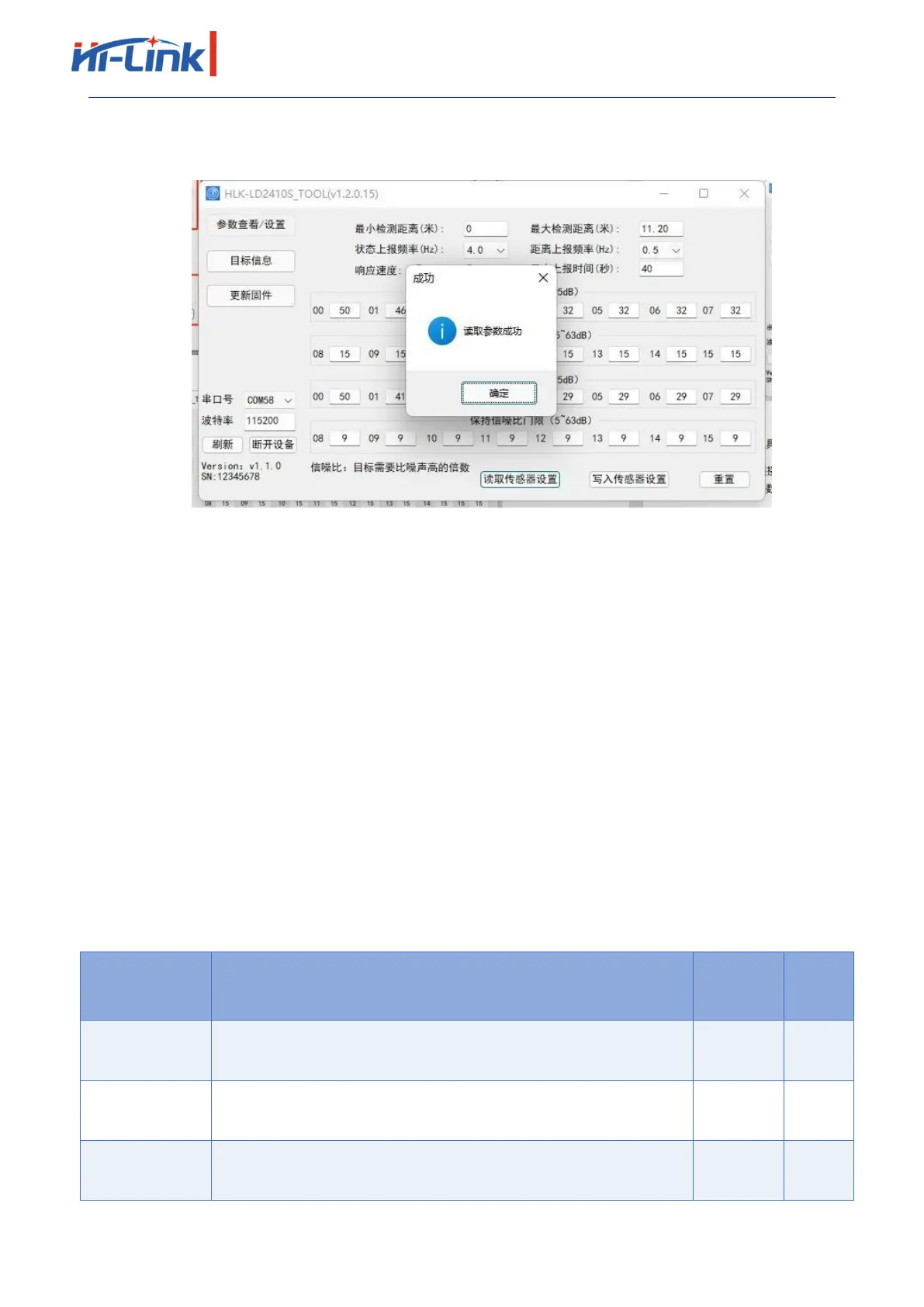

Figure 4-3 Page for reading sensor parameters on the host
The steps to change one or more sensor parameters using the host tool are as follows:
Step 1: After connecting HLK-LD2410S with the host computer tool, enter new parameter
values for all parameters that need to be changed in the "Parameter view/Setting" function page;
Step 2. Click the "Write sensor Settings" button on the current page, and the upper computer
will write the parameter values in the current interface to the sensor. After success, a "Write parameter
successfully" prompt window will pop up on the page, and click "OK" to complete the parameter
setting.
If you need to restore the parameter Settings of the sensor to the default Settings, click "Reset"
on the "Parameter View/Setting" function page. The upper computer tool will send the default
parameters to the sensor and update the parameters on the "Parameter View/Setting" function page.
Table 4-2 describes the parameters on the Parameter View/Set page of the host
tool.
Table 4-2 Describes the parameters on the host tool page
Name of
parameter
Function
of
parameter
Range of
parameter
Unit
Minimum
detection
distance
Minimum effective detection distance of the sensor
0~11.20
m
Maximum
detection
distance
Maximum effective detection distance of the sensor
0~11.20
m
Status
reporting
frequency
Frequency at which the sensor reports a manned/unoccupied state
0.5~8
Hz
