9.3 Common materials
Before design, understand the material
and electrical characteristics of the
radome

The table on the right is for reference
only, Please confirm the actual value
with the supplier
The height of the antenna to the inner
surface of the radome H

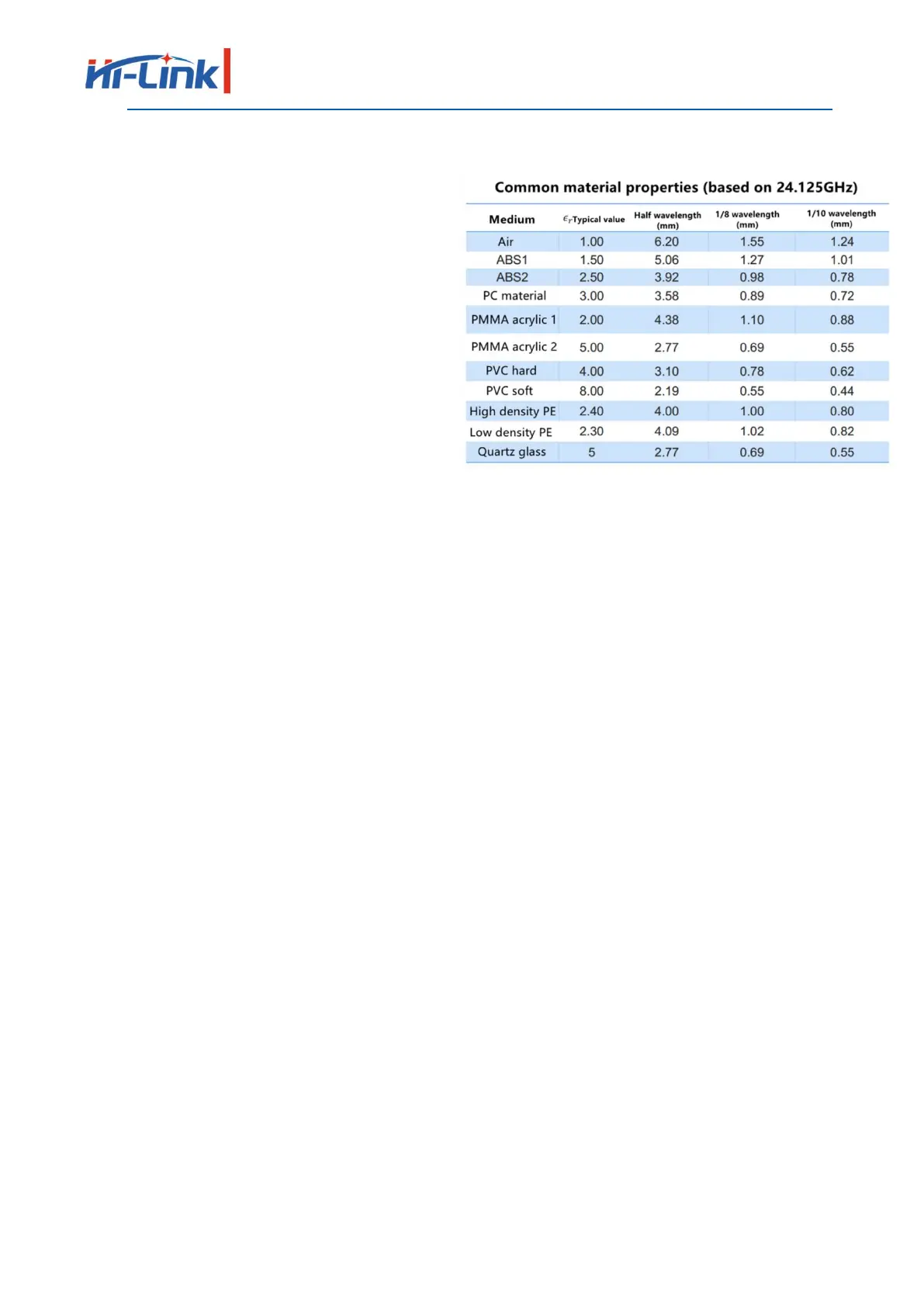

 When space allows, 1 or 1.5 times Table 5 Common material properties of antenna covers
Wavelength is recommended.
 For example, 12.4 or 18.6mm is recommended for 24.125GHz

Error control: ±1.2mm
The thickness of antenna cover D
 Recommended half wavelength, error control ±20%

If the thickness requirement of half wavelength cannot be met
 Low  material is recommended

Thickness recommended 1/8 wavelength or thinner
 The effect of inhomogeneous materials or multi-layer combination of materials on
radar performance is recommended for experimental adjustment during design
