4 Hardware description
4.1 Dimension

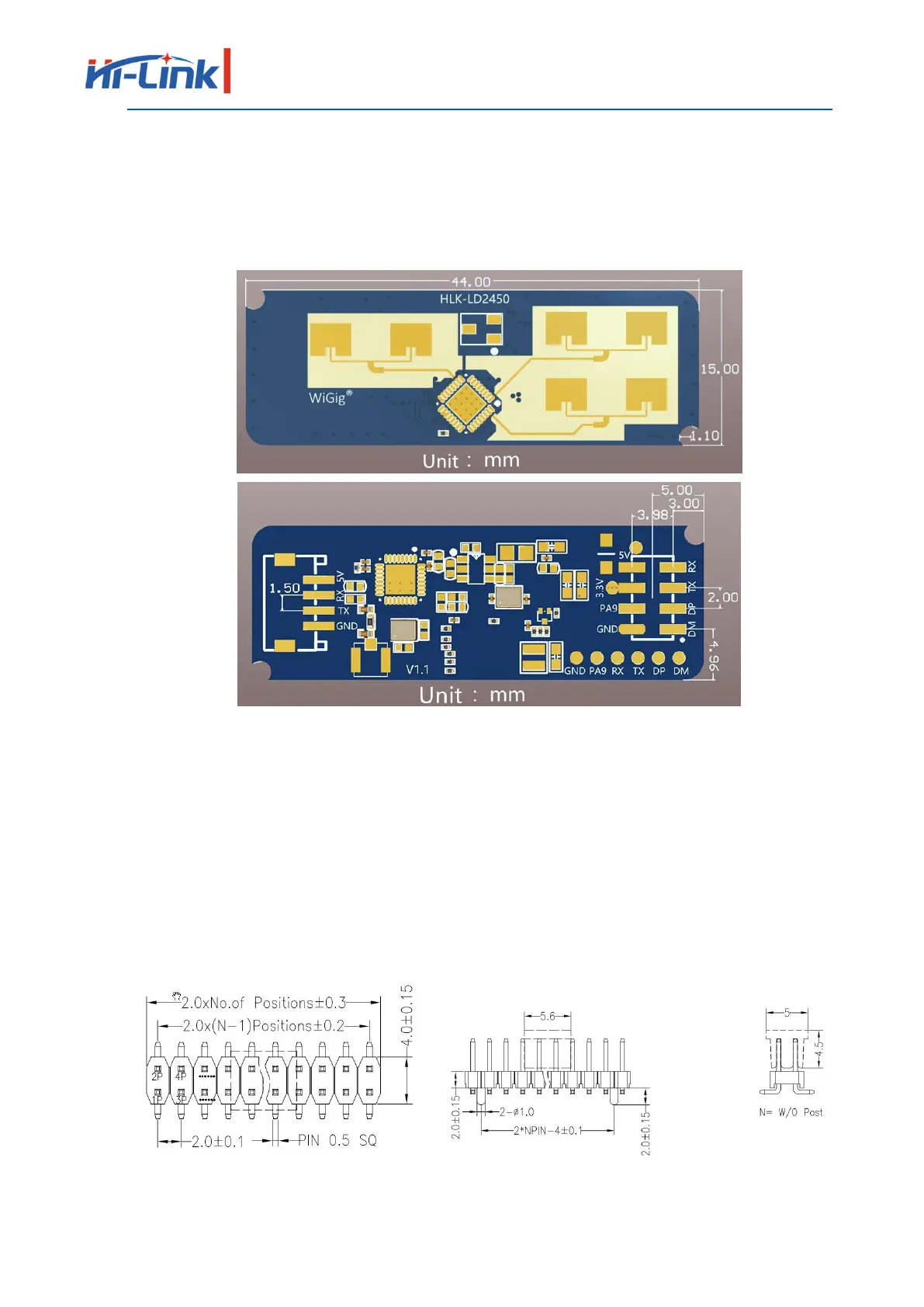

Figure 3 Module size diagram
The module provides two kinds of external interfaces, socket and pin, both of
which have a serial port and a power supply port, so users can choose to use either of
them as needed.
The dimensions of the pin interface are shown below:
