7 Installation method and detection range
The typical installation method of LD2450 is wall mounting, as shown in Figure
5, the farthest positioning tracking distance is 6m. wall mounting needs to consider the
application scenario of shading and top interference, the recommended installation
height range is 1.5~2m.

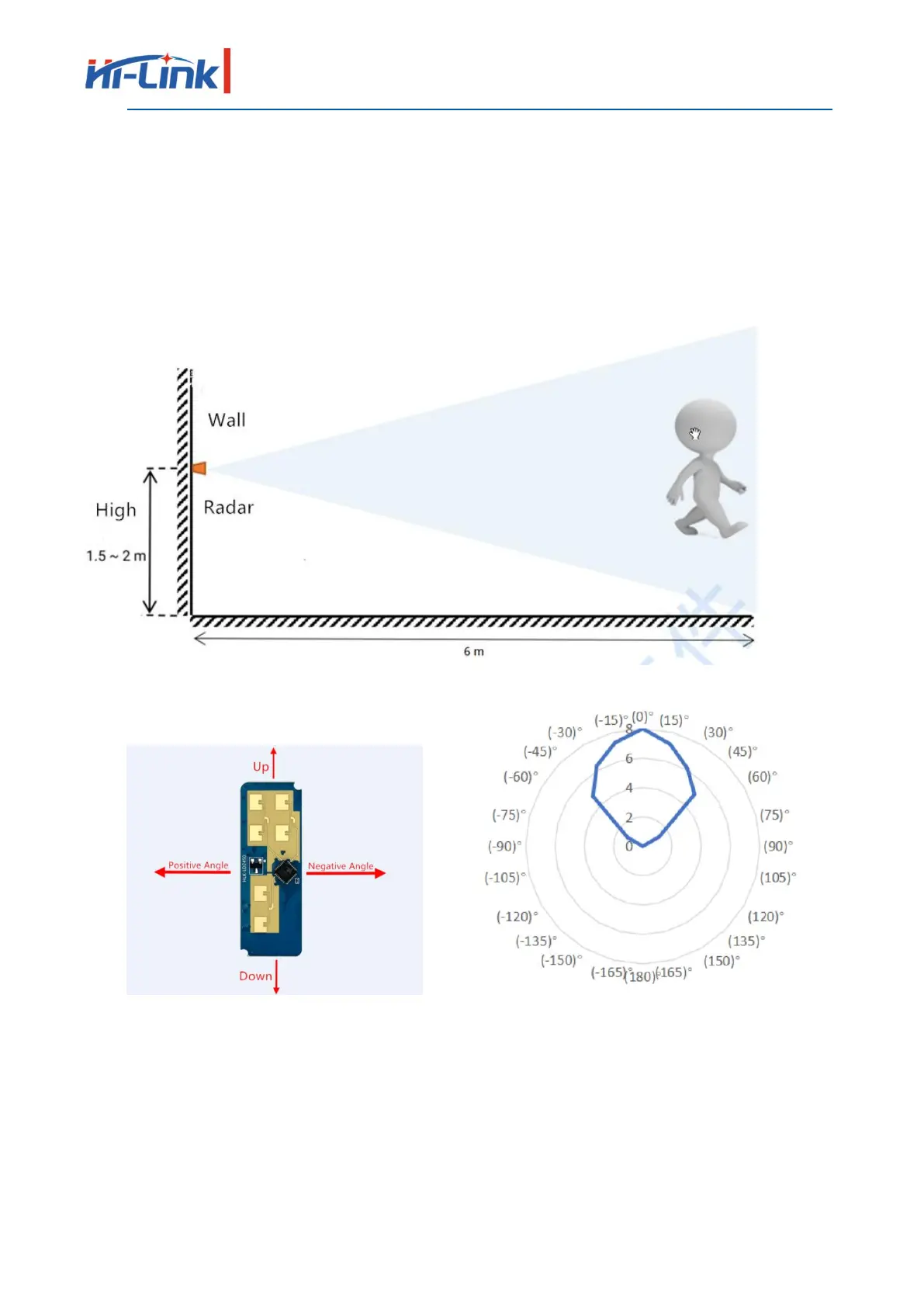

Figure 5 Diagram of wall mounting
Figure 6 Radar wall mounting angle identification Figure 7 Schematic diagram of the tracking range
when the radar is wall mounted (wall
height 1.5 m)
