4. Installing The Front Wheel
76
Spring
Brake disc
5. Installing The Pedals

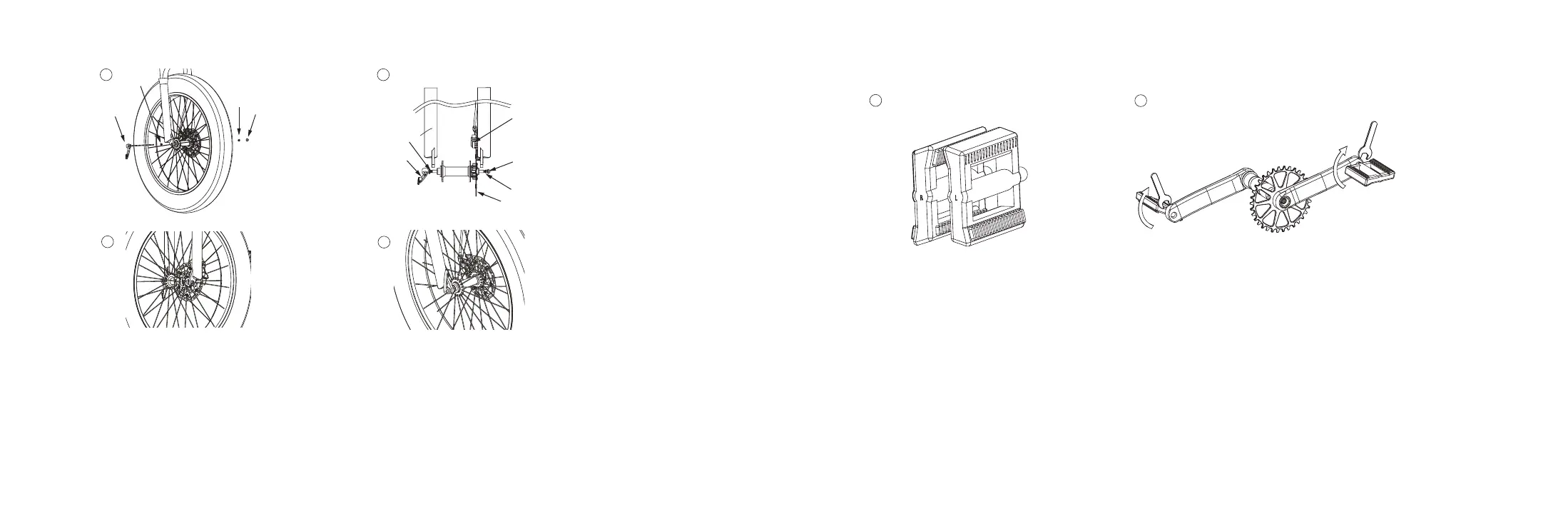

1. Insert the front wheel in between the front fork on the bike. Be sure the fork is resting on the outside of the axle.
2. Shown in figure 2, align the wheel axle with the disc brake slot, put the brake disc into the disc brake slot. Keep
the skewer and spring on the RIGHT side of electric bike's riding direction, and the other spring and the end nut on the LEFT
side of electric bike’s riding direction. Then insert the skewer into the wheel axle, shown in figure 1. BE AWARE TO DISTINGUISH
THE LEFT SIDE AND THE RIGHT SIDE.
3. Screw the skewer with the end nut and tighten.
4. Lock up the lever. Lift the lever up until parallel with the front fork. The front wheel is now installed.
1. Identify the Left and Right labels on the pedals. They can only be installed in their own side. INCORRECT INSTALLATION WILL
CAUSE DAMAGE. PLEASE BE AWARE TO DISTINGUISH LEFT & RIGHT BEFORE INSTALLATION.
2. L is for the Left pedal of the riding direction; R is for the Right pedal of the riding direction, Screw on the pedal in the direction
of the arrow.
3. Take out the 15 # open-end wrench in the tool kit and tighten it in the direction of the arrow.
1
2
3
4
Skewer
Spring
End nut
Spring
Spring
Skewer
End nut
Disc brake slot
1
2
Left - Riding direction
Right - Riding direction
