MTEC.3630.GB-A-1 Operation and maintenance manual LSA series English
LSA/HP+LJKHI¿FLHQF\DLUWRZDWHUKHDWSXPSV

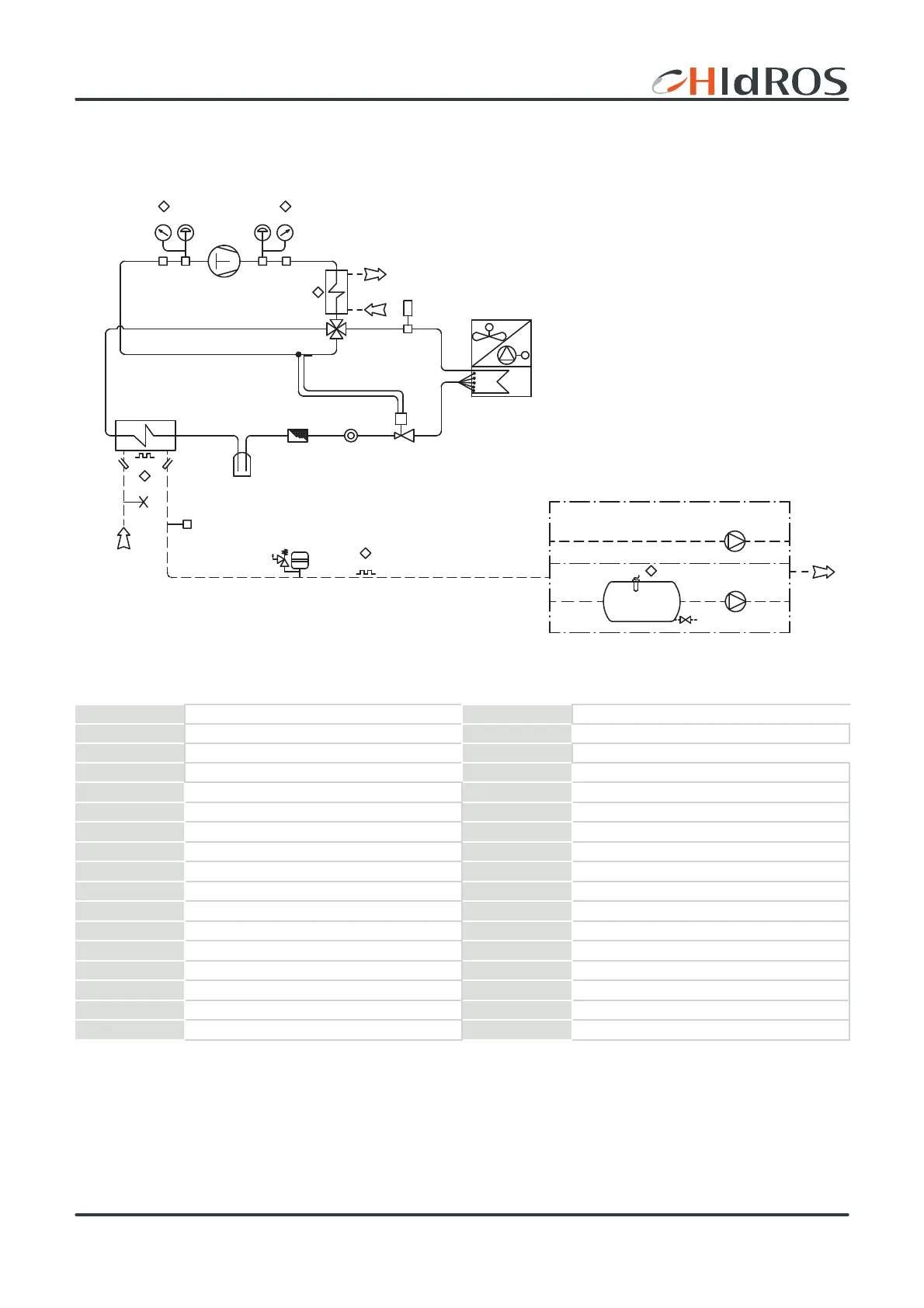

4.22 Refrigerant circuit layout
4.22.1 Refrigerant circuit layout HP version
One pump without water tank Centrifugal fan
One pump with water tank Pump
High pressure transducer Discharge valve
User water input probe Exchangers heating
User water output probe Tank resistance
Charging plug Pipes resistance
Charging plug 5/16 sae (R410) Water vent
Desuperheater :DWHUÀRZVZLWFK
Termostatic valve High pressure pressostat
/LTXLGOLQH¿OWHU Low-high pressure switch
High pressure gauge Source side
Low pressure gauge User side
Moisture indicator sight glass Expansion vessel
Liquid gas distributor Reverse cycle valve
Liquid receiver Water safety valve
Compressor
Axial fan
