High Tech Pet Armor Flex - Page 13

13

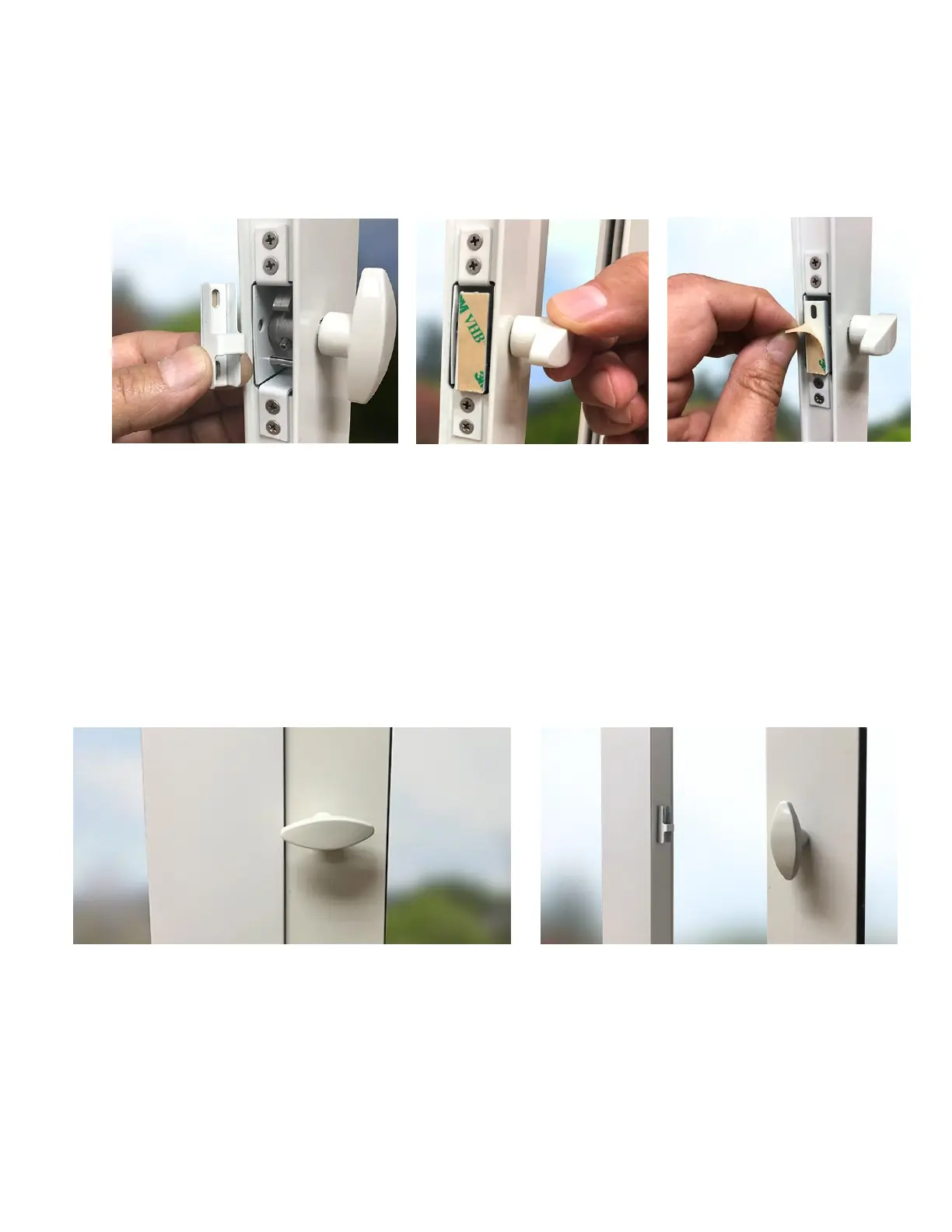

STEP 22: Insert Lock Hasp into the Door Lock Housing
Insert the Lock Hasp into the Door Lock Housing as shown in Figure 22A. Note that it is important that
the vertical orientation of the Lock Hasp is as shown in the figure. Turn the Lock Handle counter-
clockwise so that the Lock Hasp is trapped in the Door Lock Assembly. Then, remove the protective liner
from the tape on the back of the Lock Hasp.
STEP 23: Transfer the Lock Hasp to your sliding door
Slide your patio door closed so that the Lock Hasp tape makes contact and affixes to the sliding glass
door. Turn the Lock Handle clockwise, releasing the Lock Hasp and open your sliding glass door. The Lock
Hasp should now be affixed to your sliding glass door.
Fig 22B
Turn the Lock Knob counter-
clockwise to trap the Hasp
Fig 22A
Insert the Hasp into the Lock
Housing as shown
Fig 22C
Remove the tape backing
Fig 23A
Close your sliding glass door so that the tape on the
Lock Hasp attaches to your door
Fig 23B
Turn Lock Knob clockwise and open your
sliding glass door
