High Tech Pet Armor Flex - Panel Assembly and Track Insertion

7

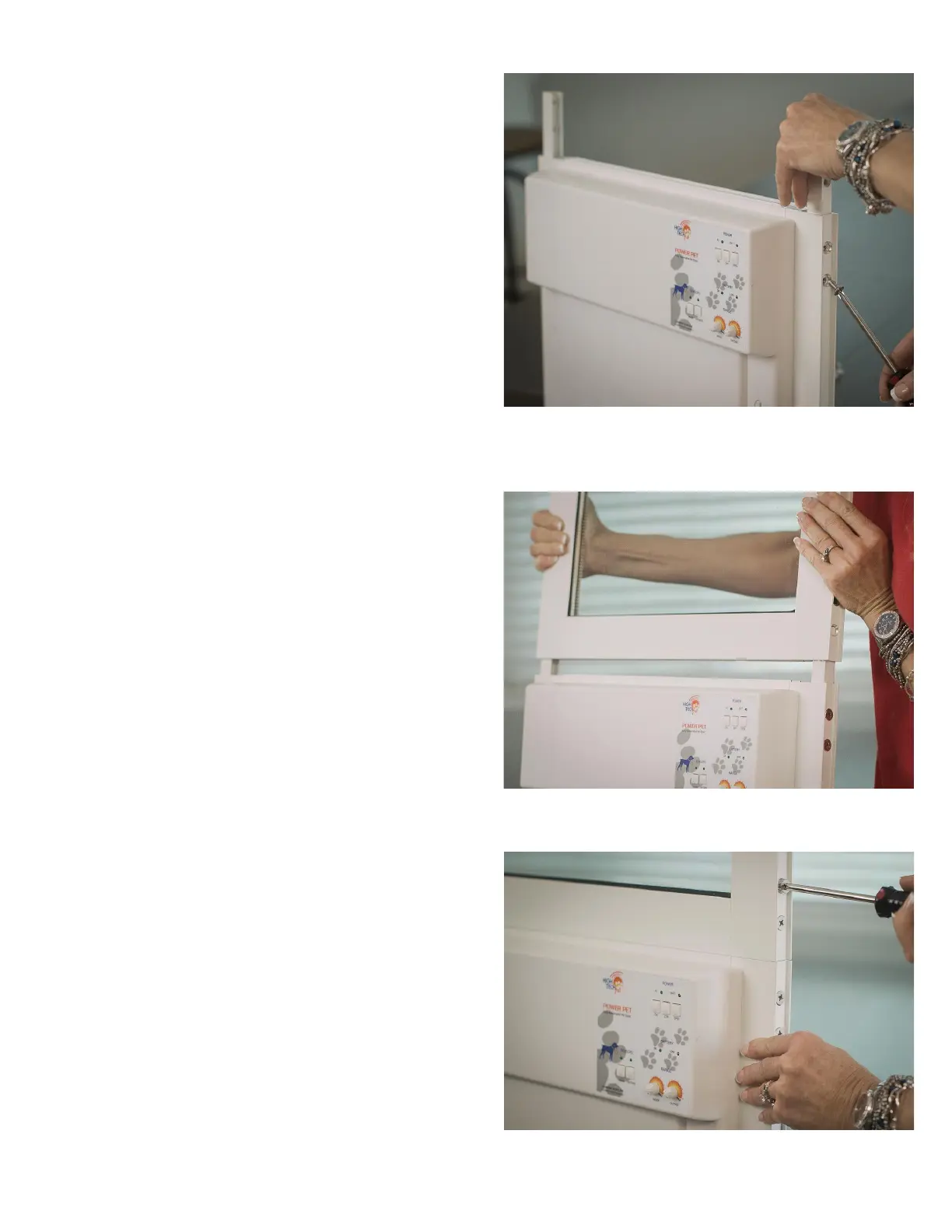

STEP 6: Insert Section Connectors
Insert Section Connectors on the Bottom Frame
Assembly panel using (2) 1/4-20 X 1/2 flat head
machine screws for each Section Connector as shown
in Figure 6.
STEP 7: Put Top and Bottom Panel Assemblies together
Insert Top Frame Assembly on to Bottom Frame
Assembly as shown in Figure 7.
STEP 8: Install Section Connector screws
Screw panels together using (2) 1/4-20 X 1/2 flat head
machine screws for each Section Connector. The Top
and Bottom Frame Assemblies now form a single
Door Panel as shown in Fig 8.
Fig 6
Fig 7
Fig 8
