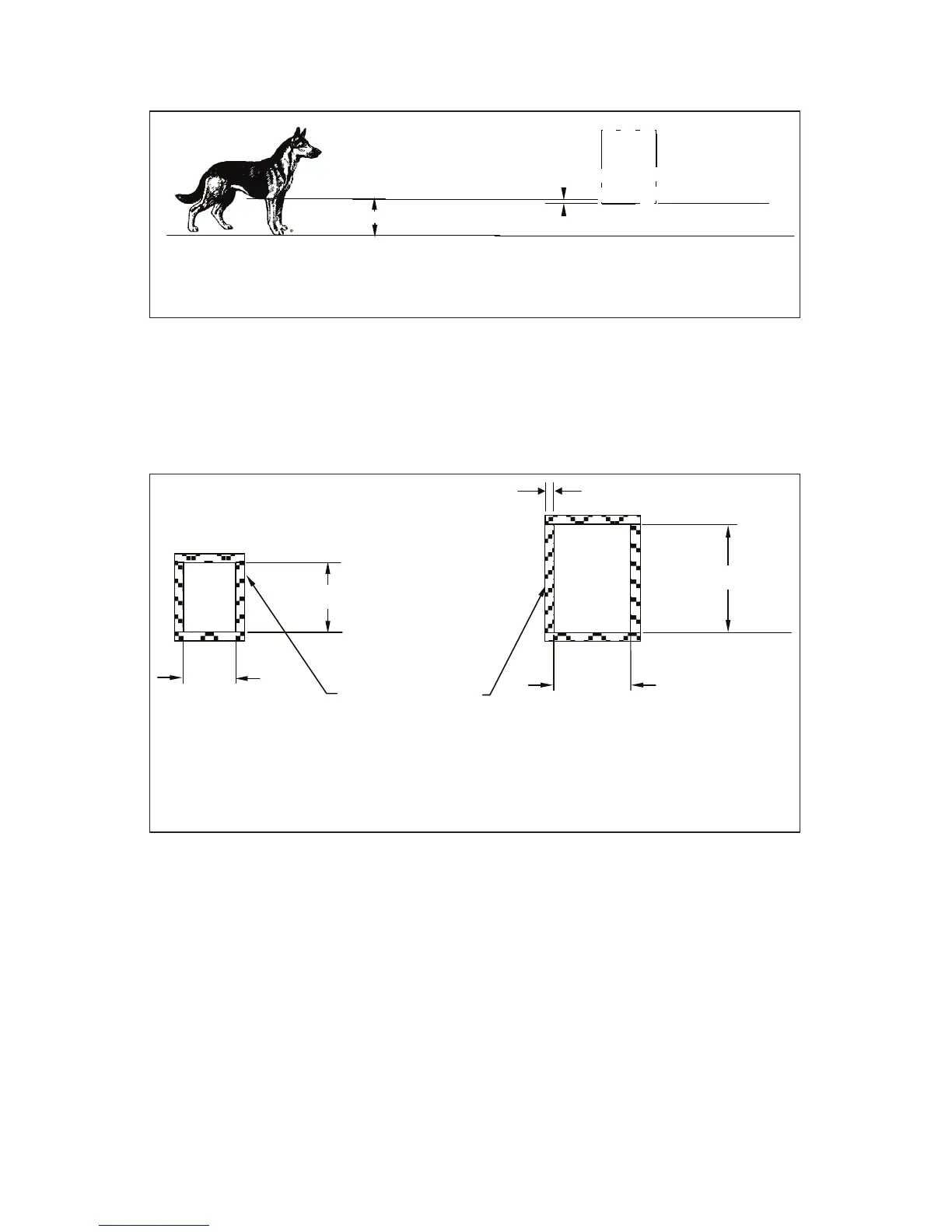

POSITIONING THE OPENING ON THE DOOR OR WALL
CUT-OUT DIMENSIONS:
Model PX-1 Model PX-2
1”
Opening is 1” lower than
height of animal’s chest
h
Measure height of animal’s
chest
Reference Line
POSITIONING THE OPENING ON DOOR OR WALL:
11.25”
8.88
Final cut out size
should include the
thickness of any
additional wall
framing (not required
for door mount or
when using optional
wall mount kit
)
17.25
12.88
Frame thickness
Reference Line Reference Line
