HIK VISION DS-K4H258D User Manual

Title:
DS-K4H250/450/258 series magnetic lock
connect to DS-K2800 series Access Controller
Version:
v1.0
Date:
01/11/2018
Product:
Access Control Device
Page:
3 of 9

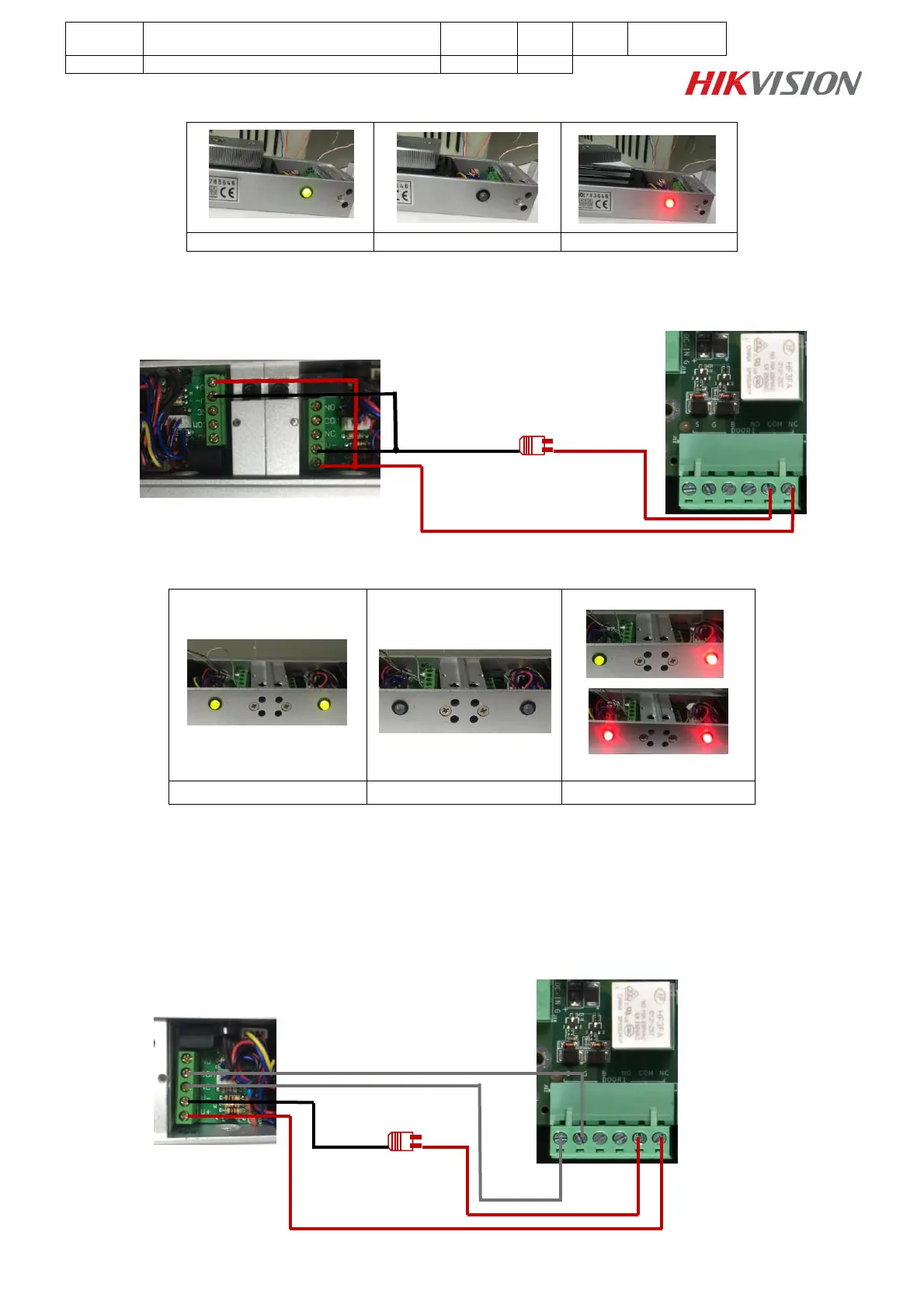

Magnetic lock LED status:
Normal(Close Door)
Normal(Open Door)
Abnormal
DS-K4H250D & DS-K4H450D & DS-K4H258D
Please connect as the following picture:
Magnetic lock LED status:
Normal(Close Door)
Normal(Open Door)
Abnormal
Part 2: Lock+/Lock- & NC/COM Wiring
Step 1:
DS-K4H250S
Please connect as the following picture:
NC
C
O
M
NO
S
G
NC
C
O
M
NO
S
G
V-
V+
+
-
+
-
