Title:
DS-K4H250/450/258 series magnetic lock
connect to DS-K2800 series Access Controller
Version:
v1.0
Date:
01/11/2018
Product:
Access Control Device
Page:
4 of 9

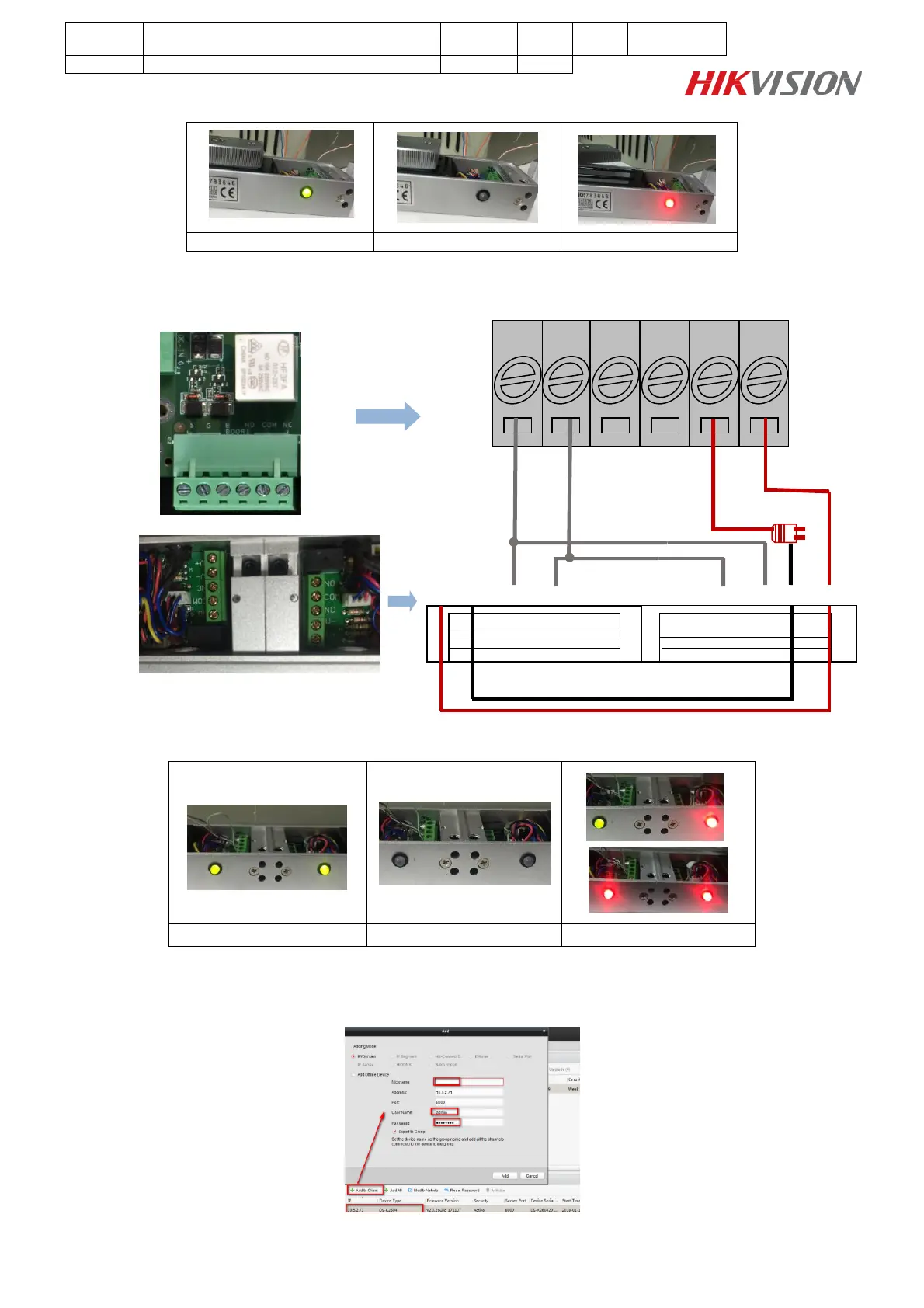

Magnetic lock LED status:
Normal(Close Door)
Normal(Open Door)
Abnormal
DS-K4H250D & DS-K4H450D
Please connect as the following picture:
Magnetic lock LED status:
Normal(Close Door)
Normal(Open Door)
Abnormal
Step 2:
Add access controller to iVMS-4200 Client;
NC
C
O
M
NO
S
G
NO
NC
G
B
S
COM
COM
V+
V-
NO
NC
NC
V+
COM
V-
NO
+
-
