Handheld Thermography Camera User Manual
9
Chapter 3 Display Settings
3.1 Focus Lens
Adjust the lens focal length properly before you set any other configurations, or it may affect the
image display and temperature accuracy.
Steps
1. Power on the device.
2. Aim the device lens to the appropriate scene.
3. Adjust the focus knob clockwise or anticlockwise, see figure below.

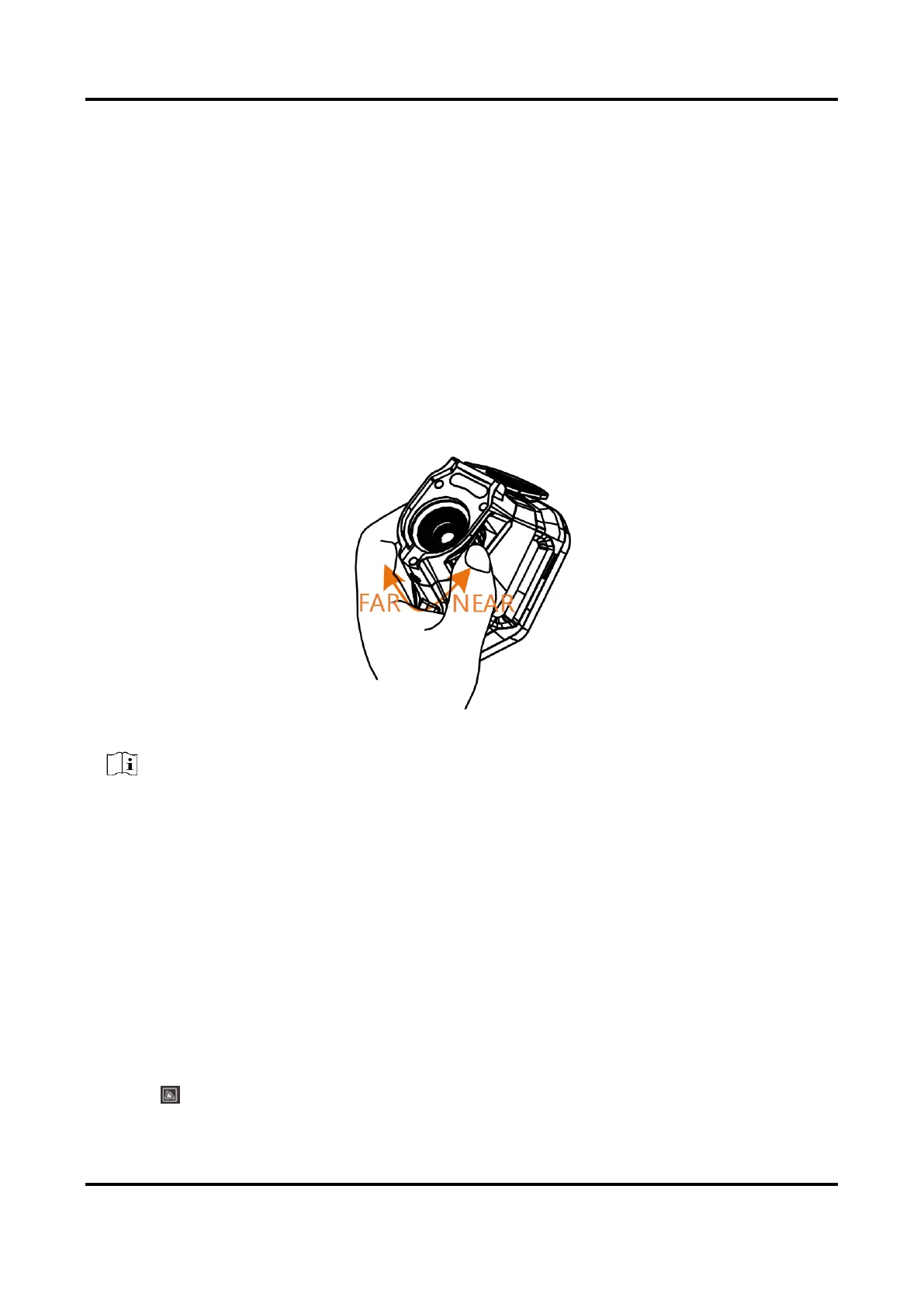

Figure 3-1 Focus Lens
Note
DO NOT touch the lens to avoid affecting the display effect.
3.2 Set Screen Brightness
Go to Settings → Device Settings → Display Brightness to adjust the screen brightness.
3.3 Set Display Mode
You can set the thermal/optical view of the device. Thermal, Fusion, PIP, and Optical are
selectable.
Steps
1. Select from the main menu.
2. Tap on the icons to select a view mode.
