HIKVISION DS-2CD1001-I

Network Bullet Camera·Quick Start Guide
20
4. Wire the plug and network cables up.
5. Fix the O-ring to the network interface of the camera, and then
connect the network cables.
6. Wrap the network interface with the main body of the waterproof
jacket, and then rotate the fix nut clockwise to assemble it to the
main body of the waterproof jacket.
Network Interface
O-ring Plug
Waterproof Jacket Water-proof Ring Fix Nut Network Cable

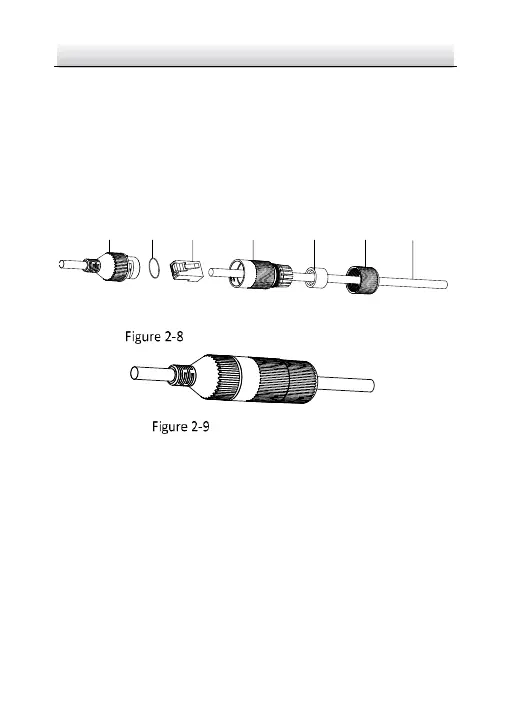

Components of Waterproof Jacket
Install Waterproof Jacket
