HIKVISION DS-2CD2012-I Installation Manual

Chapter 2 Setting the Network Camera over
the LAN
Purpose:
To view and configure the camera via LAN (Local Area Network), you need to connect the network
camera in the same subnet with your PC. Then install the iVMS-4200 software to search and change
the IP address of the network camera.

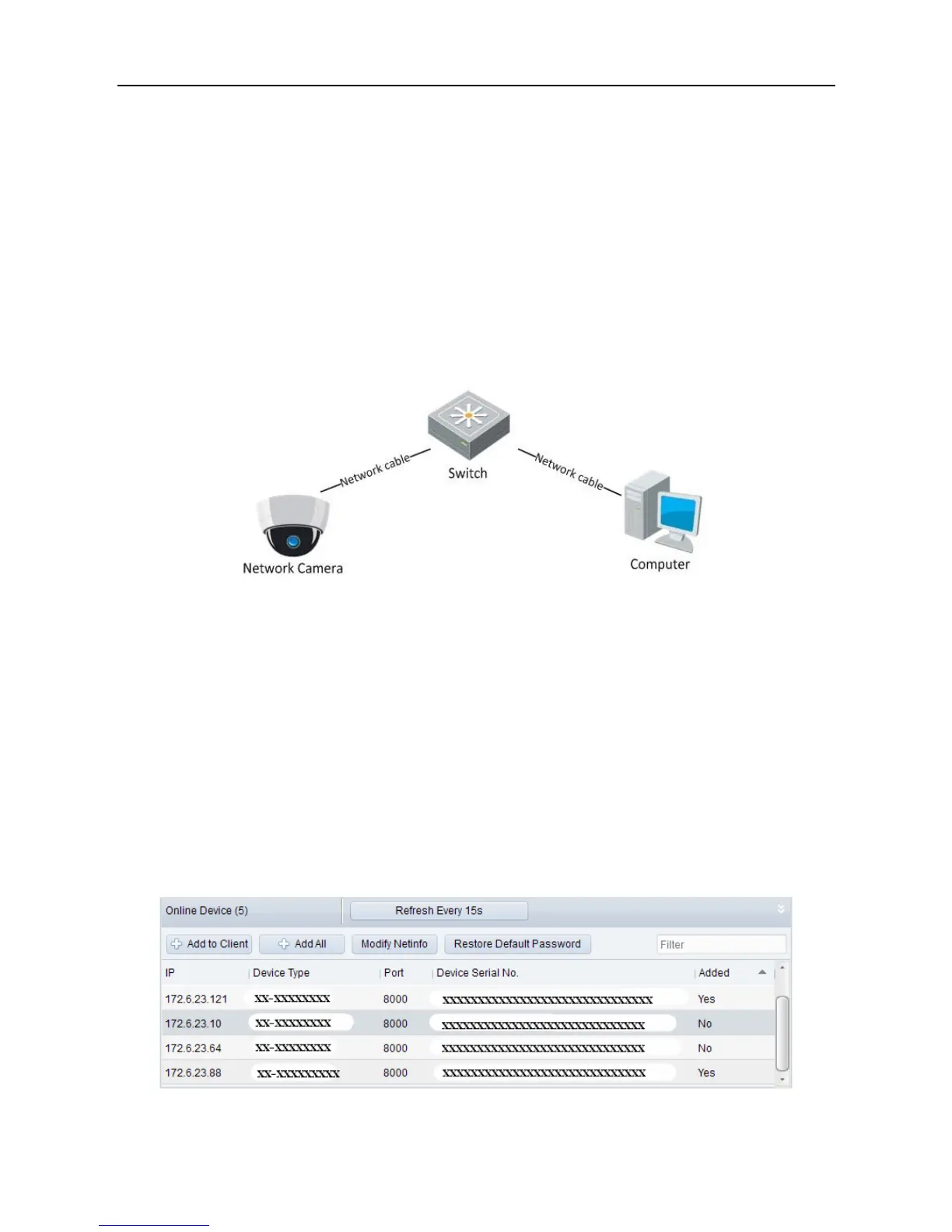

 The following figure shows the cable connection of a network camera and a PC:
Figure 2-1 Wiring over LAN
 Set the IP address of the camera for accessing via LAN.
Steps:
1. Use iVMS-4200 client software to detect the online devices. Please refer to the user manual of
iVMS-4200 client software for detailed information.
● Search online devices automatically
After launch iVMS-4200 software, it automatically searches the online devices every 15
seconds from the subnet where your computer locates. It displays the total number and
information of the searched devices in the Online Devices interface.
Go to Device Management, and click Server tab on the left-top of the window, and you can
see the online devices listed on the right bottom of the window.
Figure 2-2 Search Online Devices
9
www.eyesoniccctv.com

HIKVISION DS-2CD2012-I Specifications

General

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Bullet
Product color	White
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 960, 640 x 480 (VGA), 704 x 576
Camera shutter speed	1/25(1/30) - 1/100000 s
Minimum illumination	0.01 lx
Field of view (FOV) angle	73.1 °
Sensor type	CMOS
Optical sensor size	1/3 \
Lens diameter	4 mm
Focus adjustment	2.0
Password protection type	User
LED type	IR
Night vision distance	30 m
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	5 W
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Width	139.28 mm
Height	76.9 mm
Weight	500 g
Diameter	60.4 mm
