Network Turret Camera·Quick Start Guide
Camera
①
Mounting Base
Trim Ring
②

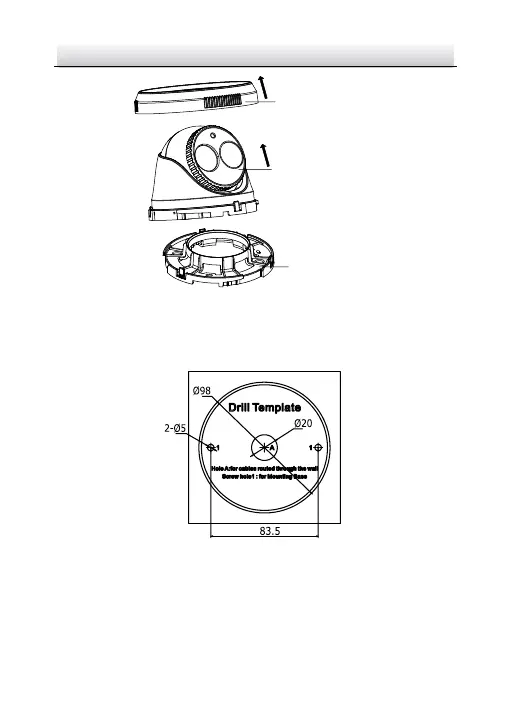

Disassemble the Camera Figure 2-9
Drill the screw holes and the cable hole on the ceiling according 2.
to the drill template.
The Drill Template Figure 2-10
There are two cable outlet methods. One is to route the cables
through the cable hole, and the other is to route the cables through
the side outlet shown below.
To Next Page
