HIKVISION DS-2CD2332-I Installation Manual

Quick Operation Guide of Network Camera
5
1.1.3 26xx Series Bullet Camera
Camera Overview:
5
4
10
9
7
3
8
6
1
2
12
11

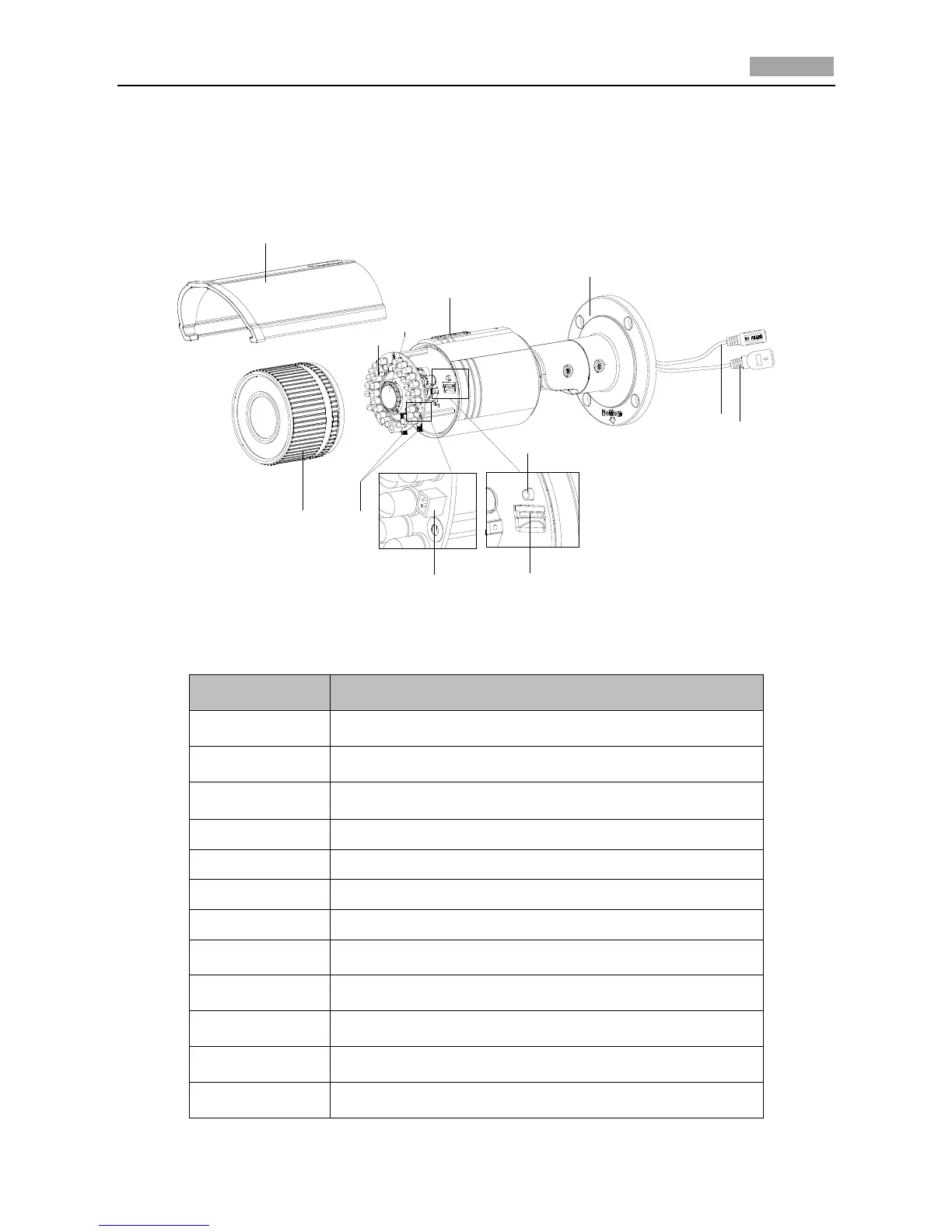

Figure 1-3 Overview
Table 1-3 Overview
No.
Description
1
Sun Shield
2
Front Cover
3
Zoom and Focus Lever
4
IR LED
5
Lens
6
Air Vent
7
Video Output Interface
8
Integrated Bracket
9
Reset Button
10
SD Card Slot
11
Power Cable
12
Network Cable
5
www.eyesoniccctv.com

HIKVISION DS-2CD2332-I Specifications

General

Type	IP security camera
PTZ control	-
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 960, 1536 x 2048, 1280 x 720 (HD 720)
Pan range	0 - 360 °
Tilt angle range	0 - 75 °
Angle of rotation	360 °
Camera shutter type	Electronic
Camera shutter speed	1/100000 s
Minimum illumination	0 lx
Field of view (FOV) angle	75.8 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Fixed focal length	- mm
LED type	IR
Night vision distance	30 m
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1X, Qos
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Power source type	PoE
Power consumption (max)	5.5 W
Power consumption (typical)	7.5 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Width	127 mm
Height	97.5 mm
Weight	670 g
