HIKVISION DS-2CD2532F-IS Quick Operation Guide

Network Mini Dome Camera·Quick Operation Guide
13
13

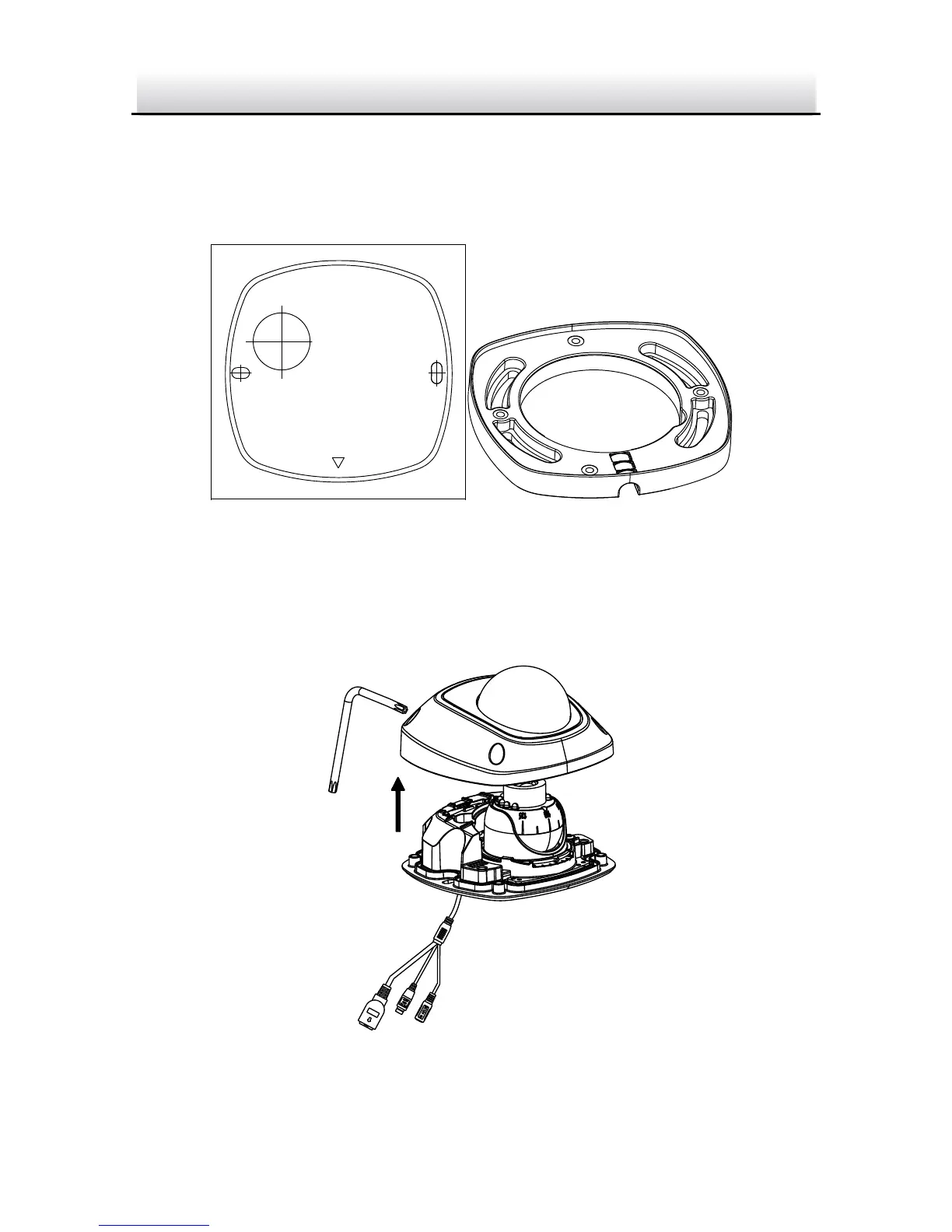

A different type of drill template might be provided because of the
different batches of products. And also, the contained adapter plate
matches with type II drill template differs as well. See figure below.
Type II Drill Template Figure 2-2
2. Loosen the set screw on the front cover to disassemble the
camera with the supplied Allen key.
Disassemble the Camera Figure 2-3
Drill Template
A
1 1
Hole A :for cables routed through the wall
Screw hole1 :for Mounting Base
FRONT
Code:194101278

HIKVISION DS-2CD2532F-IS Specifications

General

Fixed focal length	6 mm
Maximum aperture number	2
Pan range	-30 - 30 °
Tilt angle range	0 - 75 °
Angle of rotation	360 °
Camera shutter type	Electronic
Camera shutter speed	1/3 - 1/100000 s
Minimum illumination	0 lx
Field of view (FOV) angle	43.3 °
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Dome
Mounting type	Ceiling
Product color	White
International Protection (IP) code	IP66
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p
Image quality adjustment	Brightness, Contrast, Saturation
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Sensor type	CMOS
Optical sensor size	1/3 \
Password protection type	User
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
LED type	IR
Night vision distance	10 m
Cabling technology	10/100Base-T(X)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Number of cameras	1
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
DC output voltage	12
Power source type	PoE
Power consumption (max)	5 W
Audio system	2-way
Audio formats supported	G.711, G.726
Interface	RJ-45
Lens mount interface	M12

Weight and Dimensions

Depth	96.7 mm
Width	99.3 mm
Height	52.8 mm
Weight	600 g
