HIKVISION DS-2CD2712F-I User Manual

Network Dome Camera·Quick Operation Guide
26
26
3 Setting the Network Camera over the
LAN
Purpose:
To view and configure the camera via LAN (Local Area Network), you
need to connect the network camera in the same subnet with your
PC. Then, install the SADP or PCNVR software to search and change
the IP of network camera.

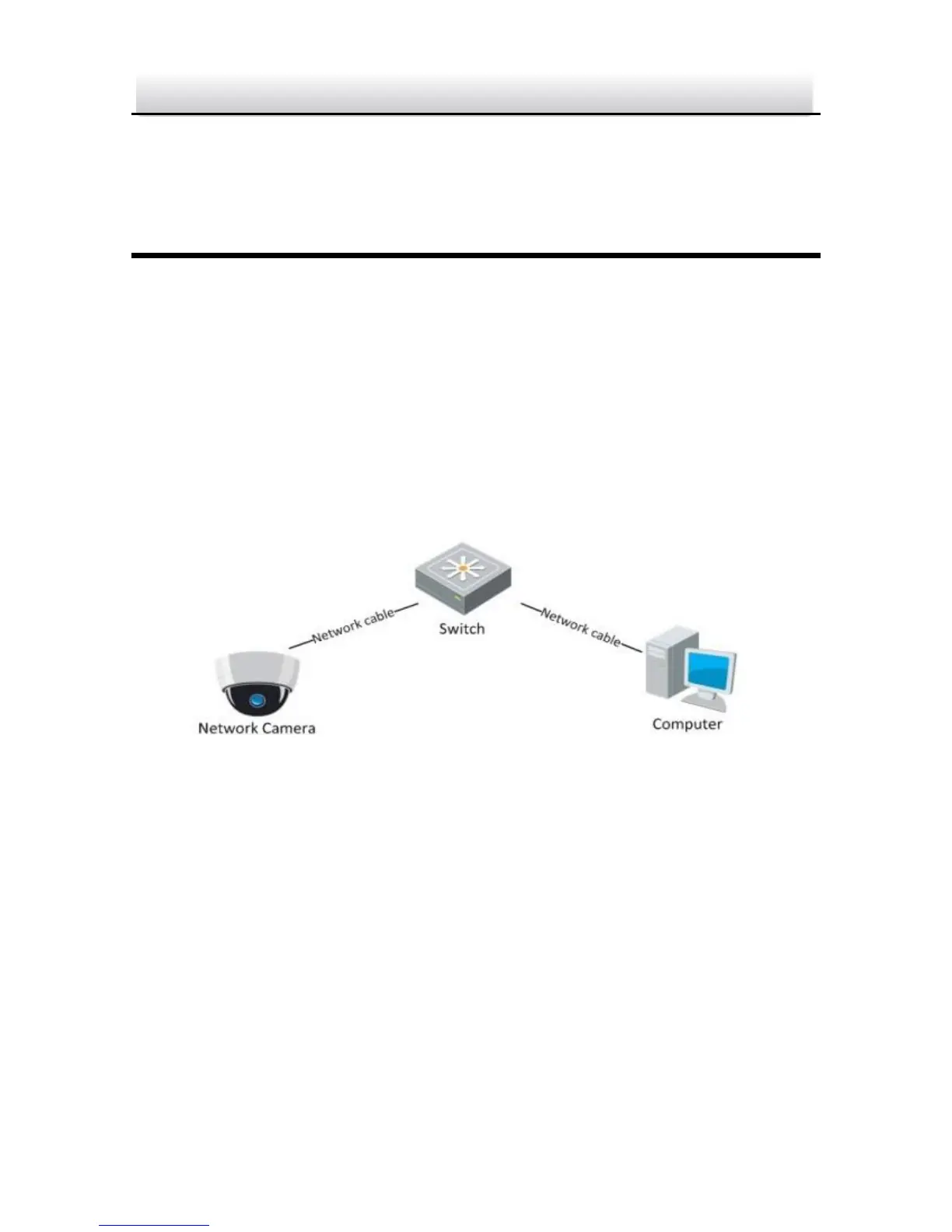

 The following figure shows the cable connection of network
camera and PC:
Wiring over LAN Figure 3-1
 Set the IP address of the camera for accessing via LAN.
Steps:
1. To get the IP address, you can choose either of the following
methods:
 Use SADP, a software tool which can automatically detect
network camera in the LAN and list the device information like IP
address, subnet mask, port number, device serial number, device
version, etc., shown in 0.

HIKVISION DS-2CD2712F-I Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 720 (HD 720)
Pan range	0 - 360 °
Tilt angle range	0 - 75 °
Angle of rotation	360 °
Camera shutter speed	1/25(1/30) - 1/100000 s
Minimum illumination	0.014 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Lens diameter	14 mm
Zoom capability	-
Focus adjustment	1.4
Focal length range	- mm
Password protection type	User
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	64 GB
LED type	IR
Night vision distance	20 m
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP, IGMP, SNMP, FTP, 802.1X, QoS, HTTPS
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	5.5 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Width	139.9 mm
Height	99.9 mm
Diameter	140 mm
