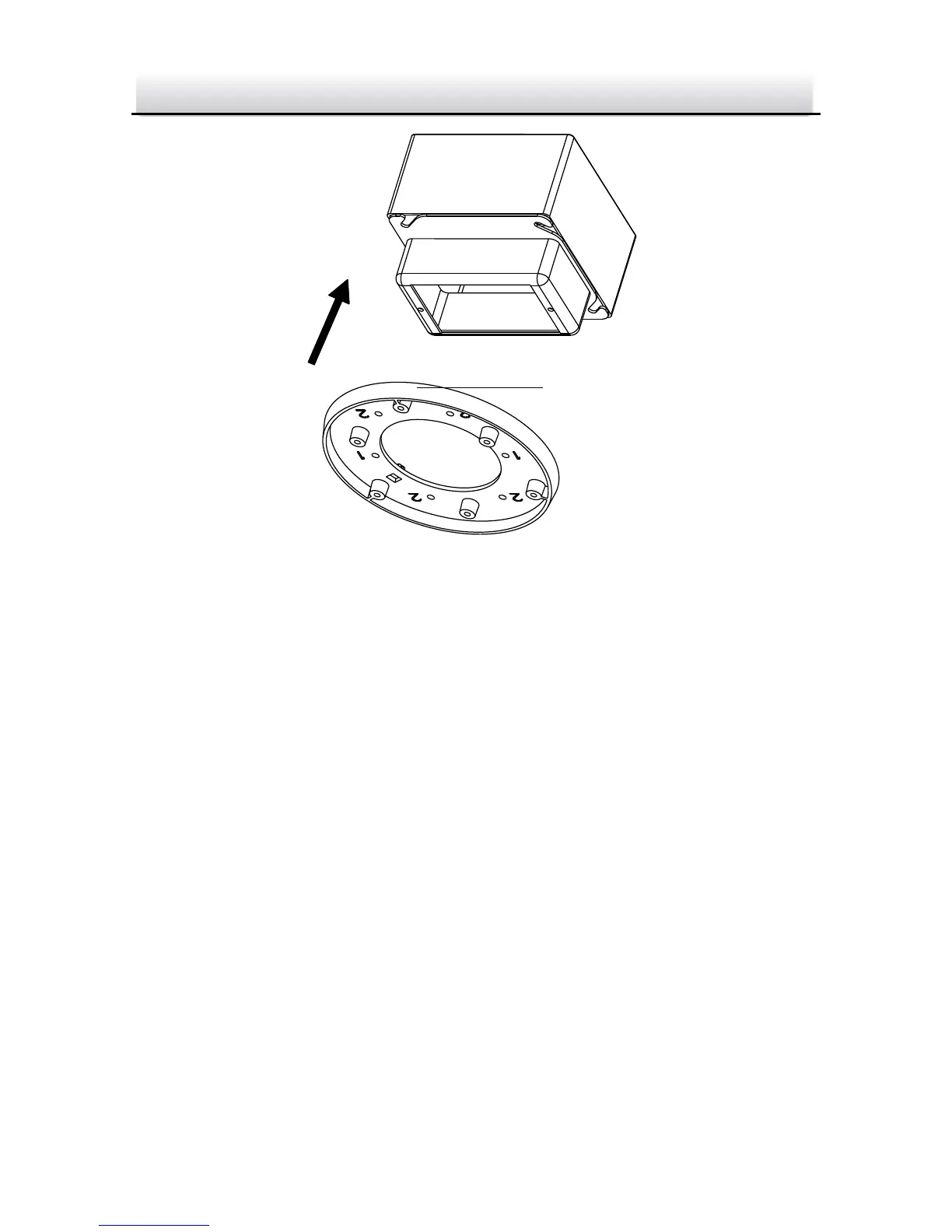

In-ceiling Mount Figure 2-8
4. Route the cables through the hole in the center of the mounting
base.
5. Align the camera with the mounting base.
6. Tighten the screws to secure the camera with the mounting base.
7. Connect the video output connector to the monitor. Connect the
power connector to the power supply.
8. Adjust the image and focus. Please refer to the section 2.3 for
more detailed information.
