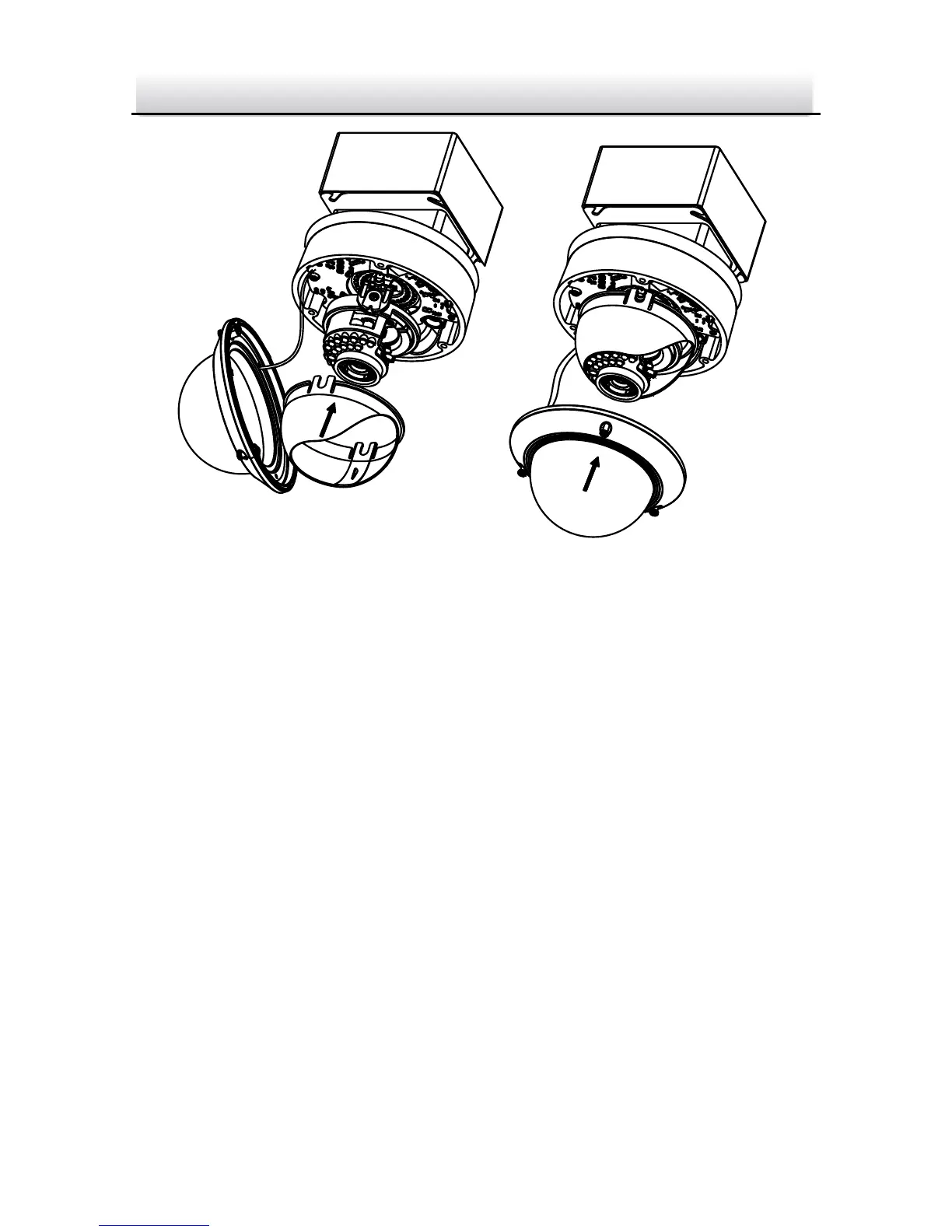

Secure the Bubble Figure 2-10
2.2.3 Wall Mounting
For the wall mounting, you have to purchase a wall mount.
Steps:
1. Disassemble the camera. Refer to the section 2.1.
2. Install the wall mount and mounting adapter as shown in Figure
2-11.
3. Align the screw holes of the mounting base with the
corresponding screw holes of the mounting adapter.
4. Secure the mounting base to the mounting adapter with four
screws.
To Next Page
