Network Dome Camera·Quick Operation Guide

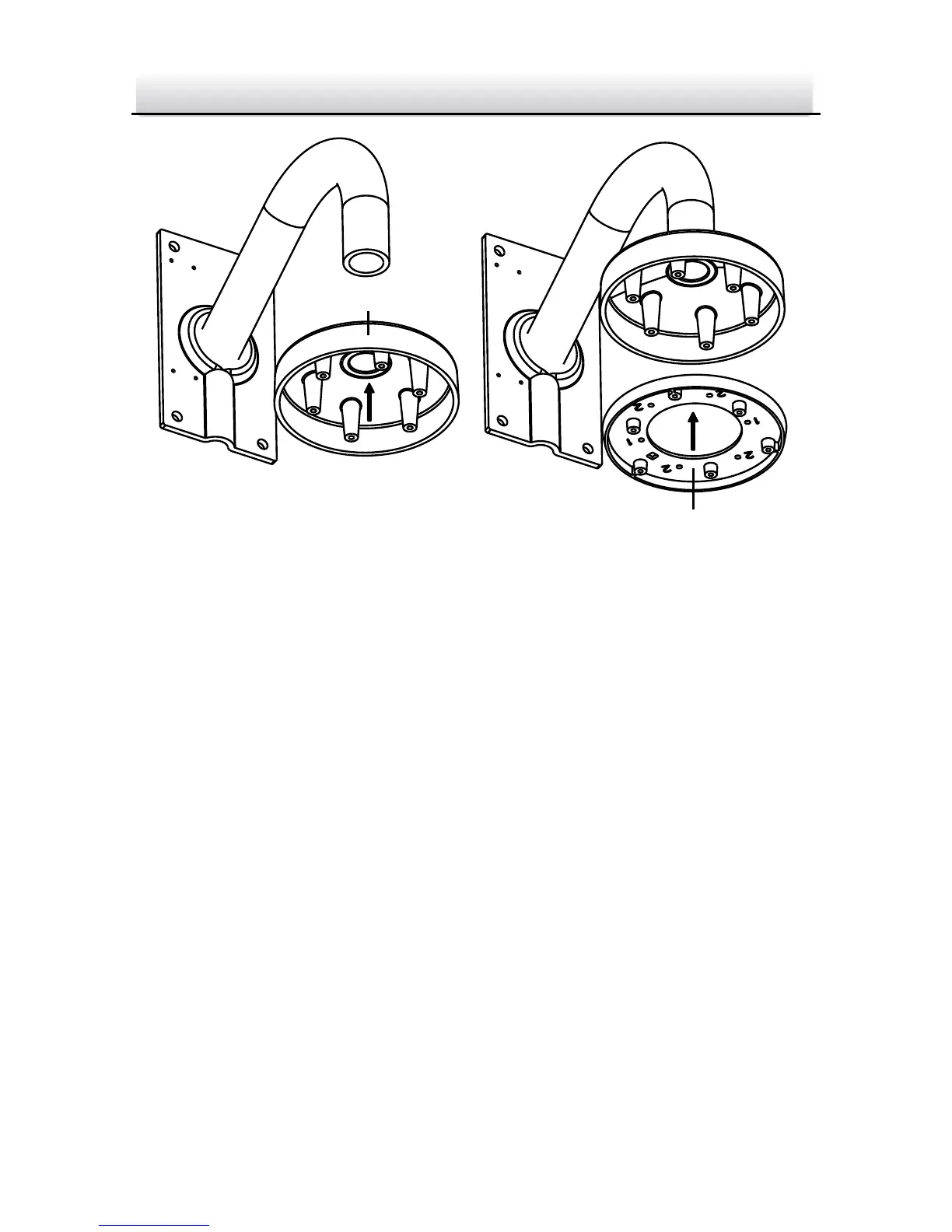

Install the Mounting Base Figure 2-11

5. Route the cables through the hole in the center of the wall mount.

6. Align the camera with the mounting base.

7. Tighten the set screws to secure the camera with the mounting

base.

8. Connect the video output connector to the monitor. Connect the

power connector to the power supply.

9. Adjust the image and focus. Please refer to the section 2.3 for

more detailed information.

Mounting Adapter

Mounting Base

Other manuals for HIKVISION DS-2CD2732F-I

Questions and Answers:

Need help?

Do you have a question about the HIKVISION DS-2CD2732F-I and is the answer not in the manual?

General

Type	IP security camera
PTZ control	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720)
Pan range	0 - 360 °
Tilt angle range	0 - 75 °
Angle of rotation	360 °
Camera shutter speed	1/30 - 1/100000 s
Minimum illumination	0.095 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focal length range	- mm
Password protection type	User
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	64 GB
LED type	IR
Night vision distance	20 m
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP, IGMP, SNMP, FTP, 802.1X, QoS, HTTPS
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	5.5 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
