HIKVISION DS-2CD2732F-IS Installation Manual

Installation Manual of Network Camera
94
No.
Description
1
Sun Shield
2
Front Cover
3
Zoom and Focus Lever
4
IR LED
5
Lens
6
Air Vent
7
Video Output Interface
8
Integrated Bracket
9
Reset Button
10
Micro SD Card Slot
11
Power Interface
12
Network Interface
 Press RESET button about 10s when the camera is powering on or rebooting to restore the default
settings, including the user name, password, IP address, port No., etc.

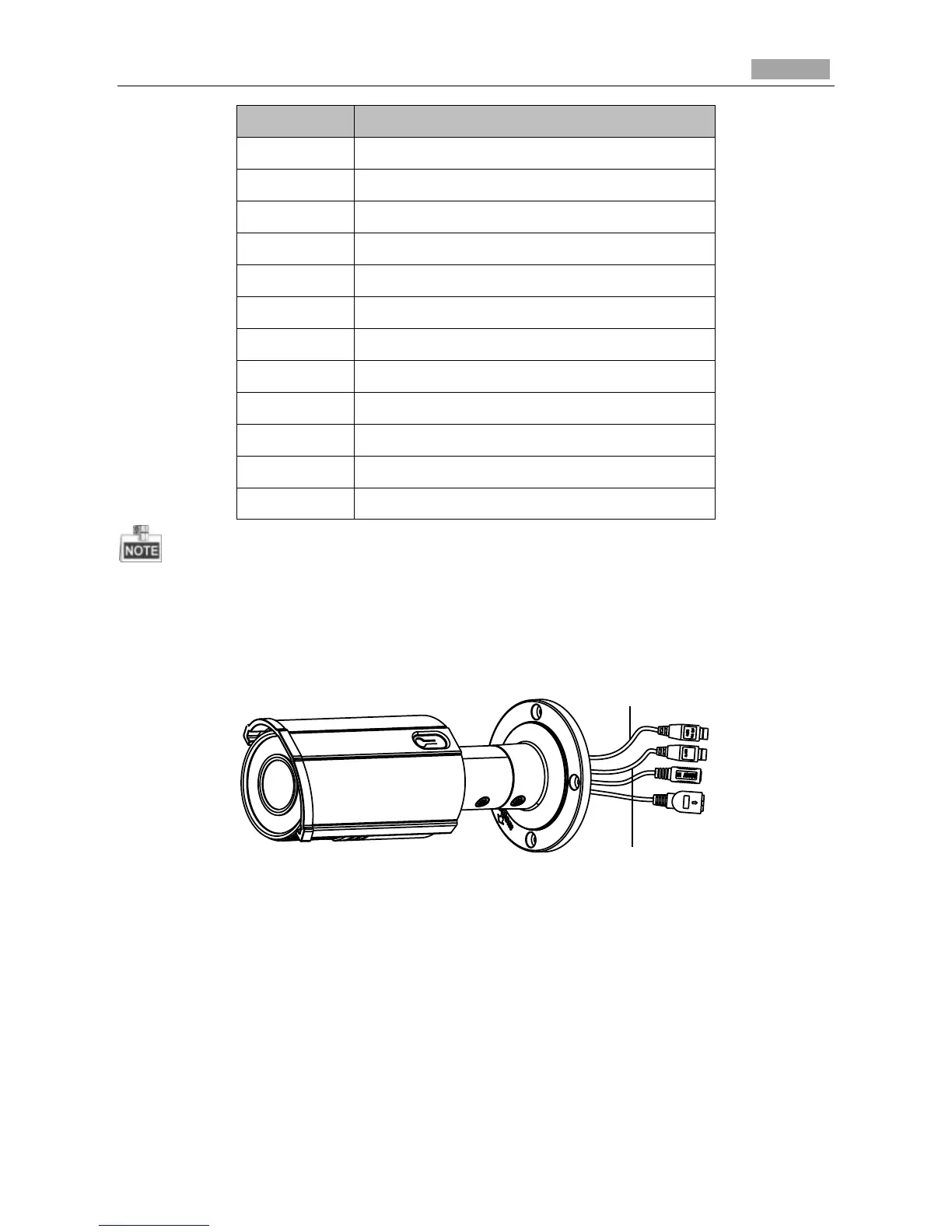

 Some of the models support audio and alarm functions. The interfaces are shown as follows.
Audio Cable
Alarm Cables
Figure 4-24 Audio and Alarm Interfaces
4.5.2 Installation
 SD Card Installation
Steps:
1. Loosen the lock screw on the sun shield to slide the sun shield according to the arrow direction as
shown in Figure 4-25 (left).
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD2732F-IS Specifications

General

Type	IP security camera
PTZ control	-
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Dome
Mounting type	Ceiling
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, M-JPEG
Analog signal format system	NTSC, PAL
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Pan range	0 - 355 °
Tilt angle range	0 - 75 °
Angle of rotation	355 °
Camera shutter speed	1/25(1/30) - 1/100.000 s
Minimum illumination	0.07 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Lens diameter	14 mm
Focal length range	- mm
Password protection type	User
Built-in HDD	No
Compatible memory cards	SD, SDHC, SDXC
Maximum memory card size	64 GB
LED type	IR
Night vision distance	20 m
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
AC input voltage	12 V
Power source type	PoE
Power consumption (max)	5.5 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Width	139.9 mm
Height	99.9 mm
Weight	1000 g
Diameter	140 mm
