HIKVISION DS-2CD7153-E Installation Manual

Installation Manual of Network Mini Dome Camera
Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©
6

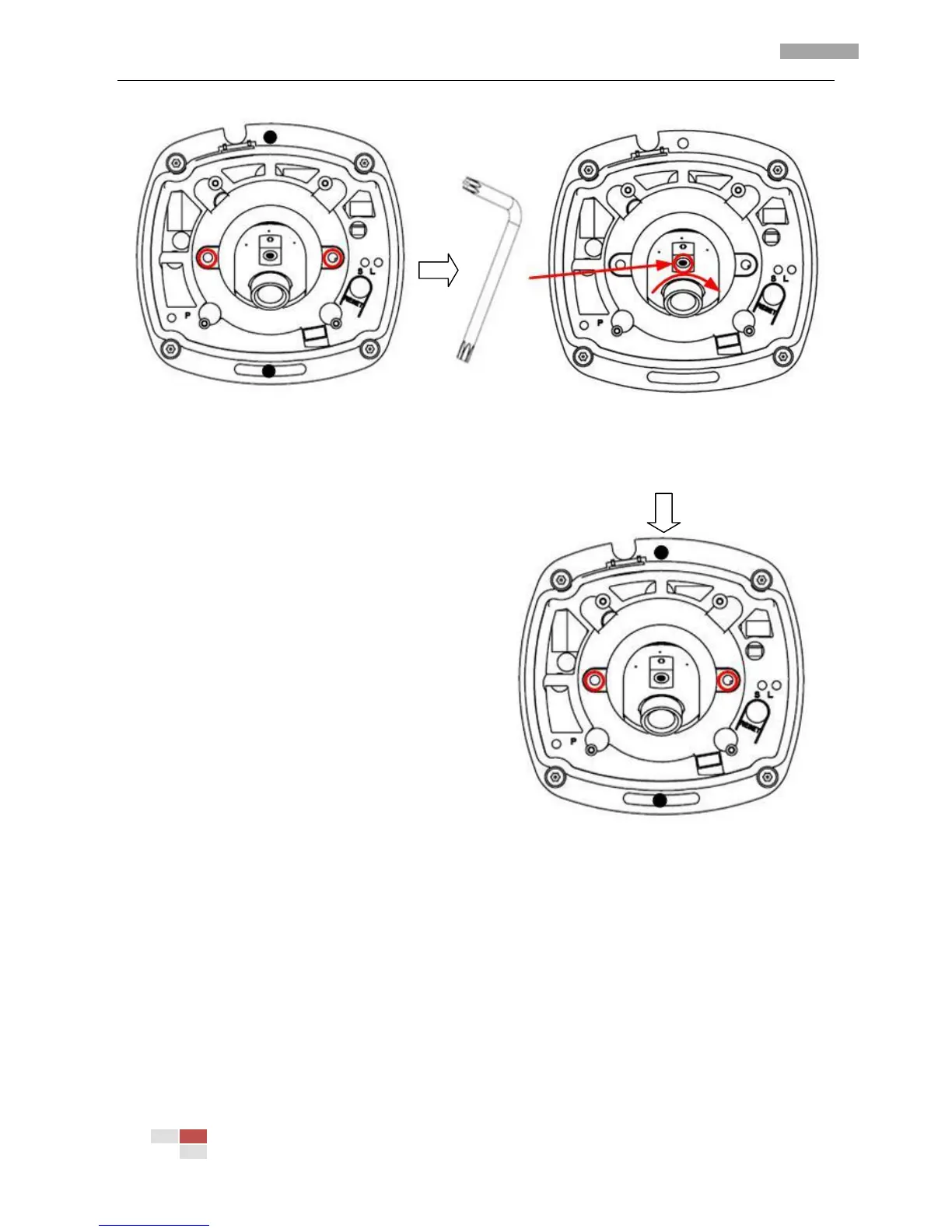

Loosen the lens set screws Insert the hexagonal screw driver into the hole
marked in the picture , and then adjust
horizontally and vertically the camera’s pan and
tilt by turning the hexagonal screw driver
Tighten the lens set screws
4. Install the back box, and tighten the set screws.
NOTE：
 As the lens of camera has
already been factory adjusted
to the best imaging effect,
thus it only needs to adjust
the pan and tilt view angle.
 If the image is not clear
without the back box, please
don’t worry, the back box will
affect the imaging effect, so
when you test the imaging
effect of lens, the back box
must be installed to the
camera

HIKVISION DS-2CD7153-E Specifications

General

Type	IP security camera
PTZ control	-
Day/night mode	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	2 MP
Maximum resolution	1600 x 1200 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720), 1600 x 1200 (UXGA)
Pan range	-15 - 15 °
Tilt angle range	0 - 90 °
Angle of rotation	15 °
Camera shutter speed	1/25 - 1/100000 s
Minimum illumination	0.1 lx
Field of view (FOV) angle	68 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Focus adjustment	1.8
Fixed focal length	2.8 mm
Password protection type	User
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	4 W

Weight and Dimensions

Depth	97.5 mm
Width	99.9 mm
Height	46.5 mm
Weight	250 g
