Installation Manual of Network Mini Dome Camera
Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©
5
2.2 Hardware Installation
The ceiling mount is a suitable installation method for this camera. Please stick to the following
steps:
1. Loosen the set screws with a hexagonal screw driver (attached with the camera), and take down
the back box shown as below:

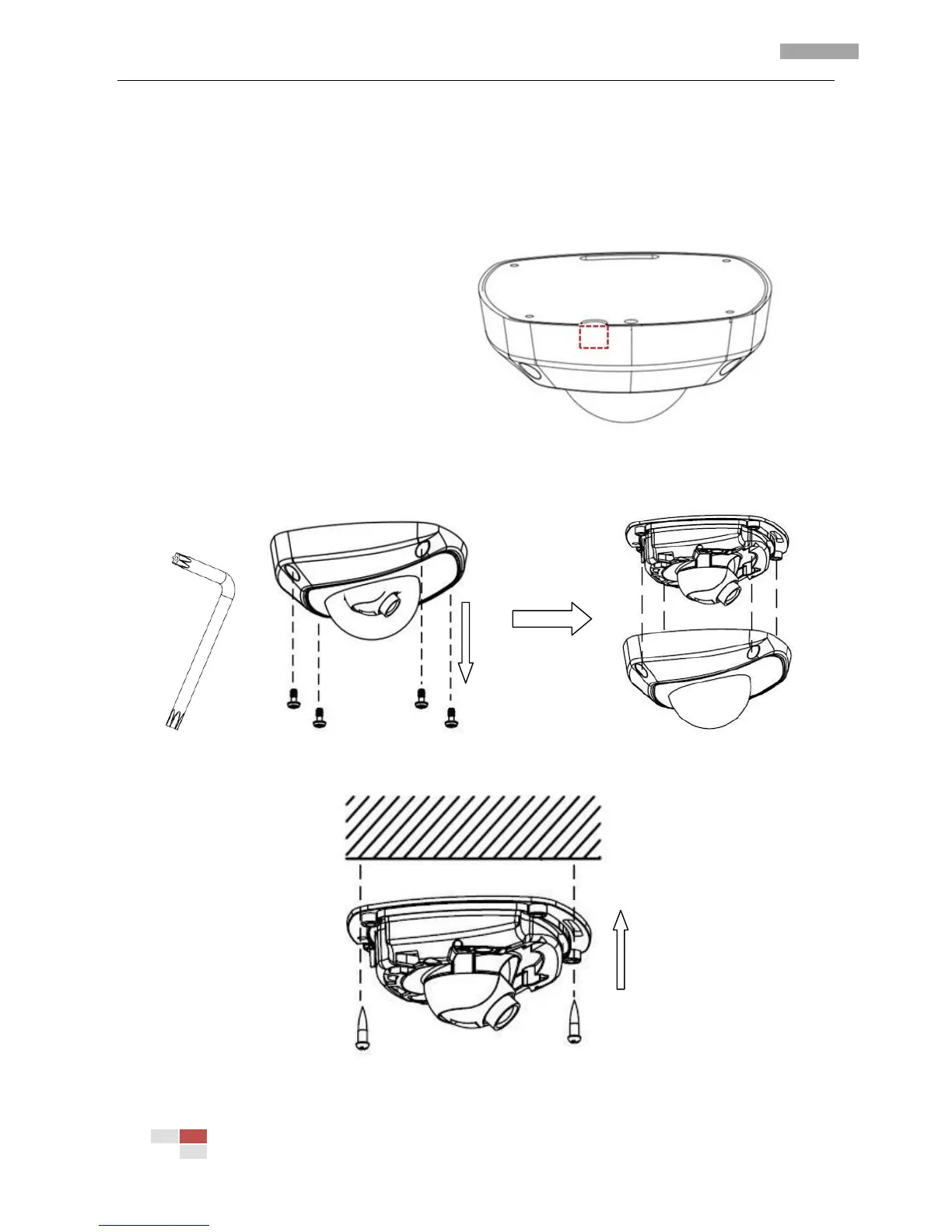

Fig. 2.2.1 Remove the back box
2. Use the screws to fix the bottom board on the ceiling.
Fig. 2.2.2 Fix the bottom board
3. While viewing the video on the computer, adjust the camera’s view angle for your need.
