HIKVISION DS-2CD7253F-EIZ

Installation Manual of Network Camera
120
10
11
12
14
13

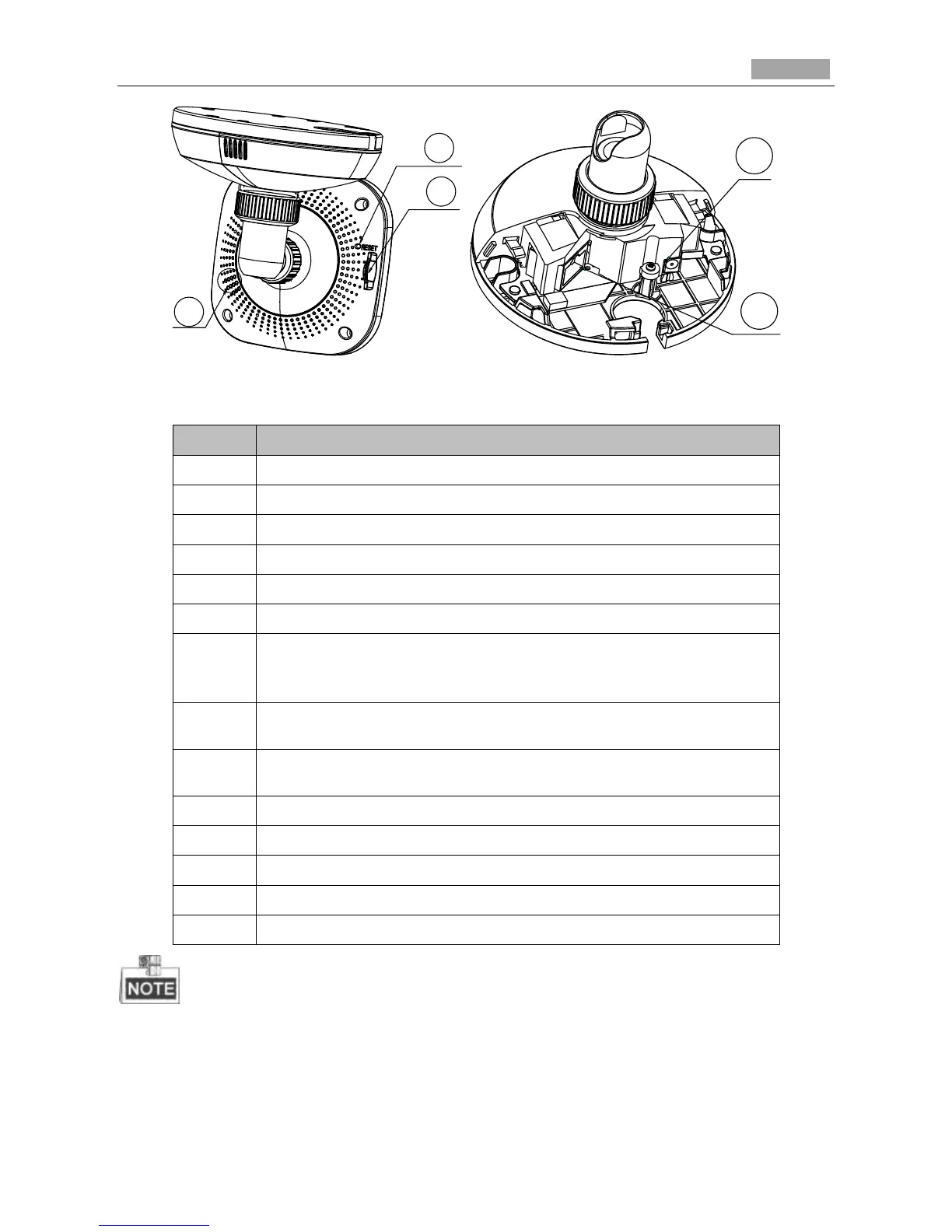

Figure 6-5 Overview
Table 6-2 Description
No.
Description
1
IR LED
2
Photosensitive Resistance
3
PIR sensor
4
Microphone
5
Lens
6
3-axis Adjustment Bracket
7
Alarm Indicator:
Indicator goes solid red (camera armed) or solid blue (camera
unarmed).
8
Status Indicator: Indicator flashes blue when any movement or presence
is detected
9
Link Indicator: Indicator flashes orange when network connection is
functioning properly.
10
Speaker
11
RESET
12
Micro SD card slot
13
Power supply interface
14
10M / 100M self-adaptive Ethernet interface & PoE
Press RESET about 10s when the camera is powering on or rebooting to restore the default settings,
including the user name, password, IP address, port No., etc.
