HIKVISION DS-2CD7253F-EIZ

Installation Manual of Network Camera
20
3.1.2 Installation
 Ceiling Mounting
Steps:
1. (Optional) use a plier to remove one clip or both two clips (marked in dotted line in Figure 3-2) on
the side of the back box and then route cables through the opening to secure the cables on the
ceiling.

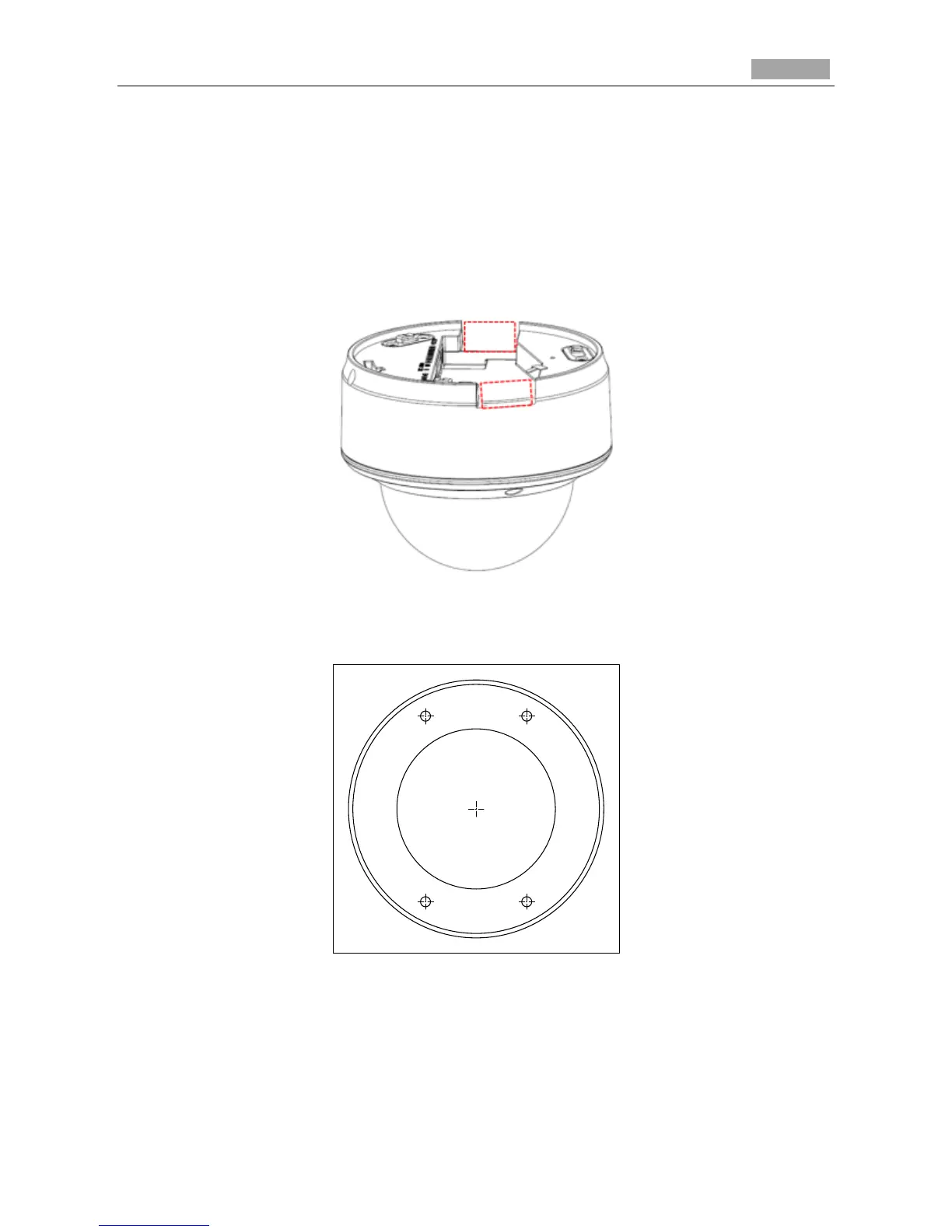

Figure 3-2 Side Clips
2. Drill the screw hole and the cable hole according to the supplied drill template.
1
1
1
1
Drill Template
A
Screw hole 1: for Mounting Base
Hole A: for cables routed
through the ceiling
Code:190600249
Figure 3-3 Drill Template
3. Fix the mounting base to the ceiling; rotate the back box counterclockwise to secure it to the
mounting base; use the lock screw to secure the dome camera.
