HIKVISION DS-2CD7253F-EIZ

Installation Manual of Network Camera
70

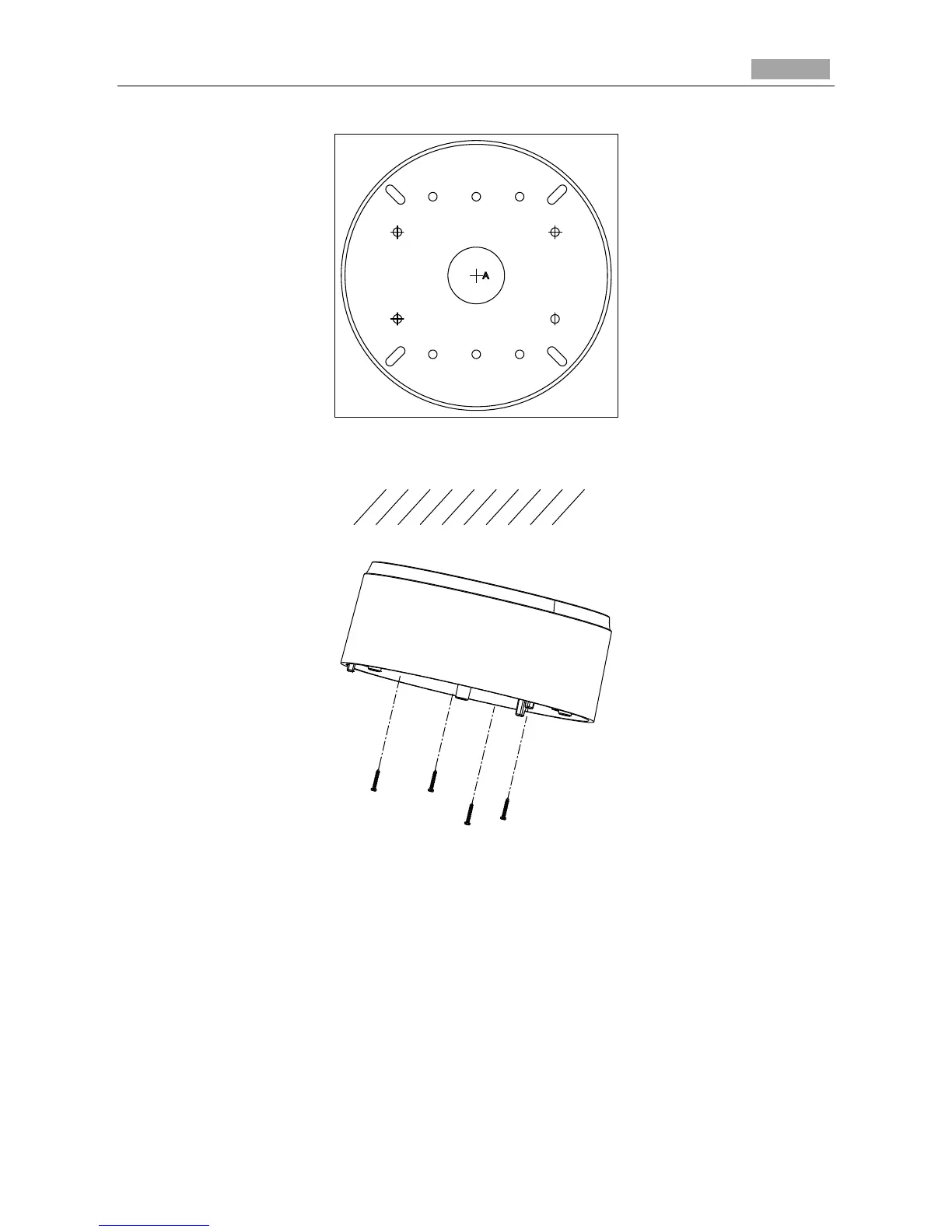

1. Drill the screw holes and the cable hole according to the supplied drill template.
Drill Tempalte
1
1
2
2
2
2
3
3
3
3
4
4
4
4
Screw Hole 3: for
Mounting Base
Hole A: for cables routed
through the ceiling
Code: 190600839
Figure 3-99 Drill Template
2. Install the mounting base to the ceiling with the supplied screws.
Figure 3-100 Install the Mounting Base
3. Connect the corresponding power cable, network cable, audio and alarm cables.
4. Install the dome drive to the mounting base.
