HIKVISION ds-2cd8153f-e Quick Operation Guide

Quick Operation Guide of Network Camera
8

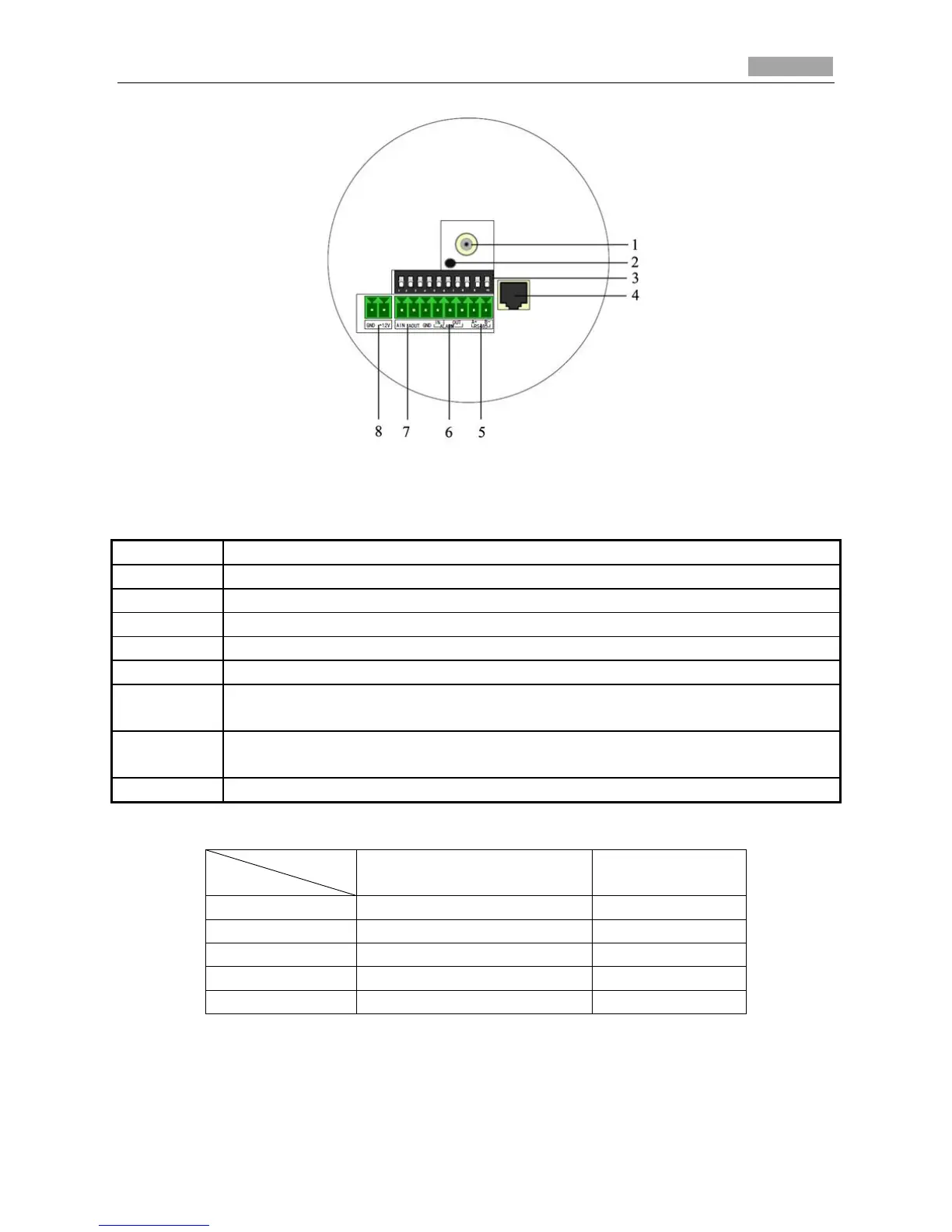

Figure 1-12 Overview
Table 1-7 Description
No.
Description
1
Video output interface
2
Power LED indicator
3
DIP switch
4
10M/100M self-adaptive Ethernet interface
5
D+, D-: RS-485 interface
6
Alarm IN: Alarm input interface
Alarm OUT: Alarm output interface
7
AIN: Audio input interface
AOUT: Audio output interface
8
Power supply interface
The function of positions 1-5 of DIP switch is shown below:
Position
Function
ON
OFF
1
SHARP: Sharpness
SOFT
2
AES: Auto Shutter
AI: Auto Iris
3
BLC: Back Light Compensation
OFF
4
FL: Anti-flicker
ON
5
NAGC: Normal AGC
SAGC: Special AGC
Camera wiring Diagram:

HIKVISION ds-2cd8153f-e Specifications

General

Brand	HIKVISION
Model	ds-2cd8153f-e
Category	Security Camera
Language	English
