HIKVISION ds-2cd8153f-e Quick Operation Guide

Quick Operation Guide of Network Camera
10
No.
Description
1
10M/100M self-adaptive Ethernet interface
2
AUDIO IN: Audio input interface
3
AUDIO OUT: Audio output interface
4
D+, D-: RS-485 interface
5
IN, G: Alarm input interface
1A, 1B: Alarm output interface
6
Power supply interface

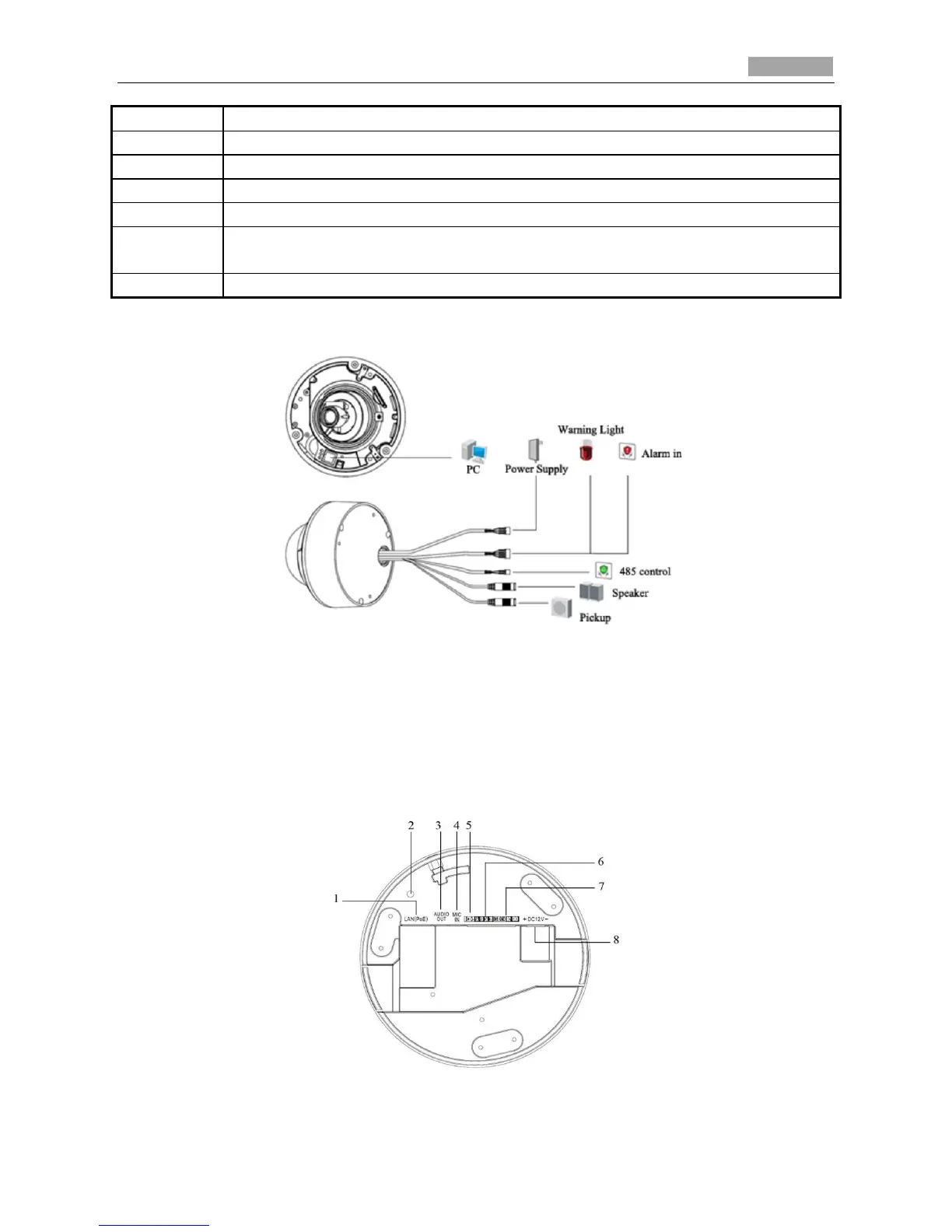

Camera wiring Diagram:
Figure 1-15 Wiring Diagram
1.2.3 Dome Camera III
Camera description:
Figure 1-16 Overview
