3. (Optional) Drill the cable hole, when the cables are
routed through the wall.
4. Take apart the junction box.
5. Install the gang box to the junction box cover with
three PM4 screws.

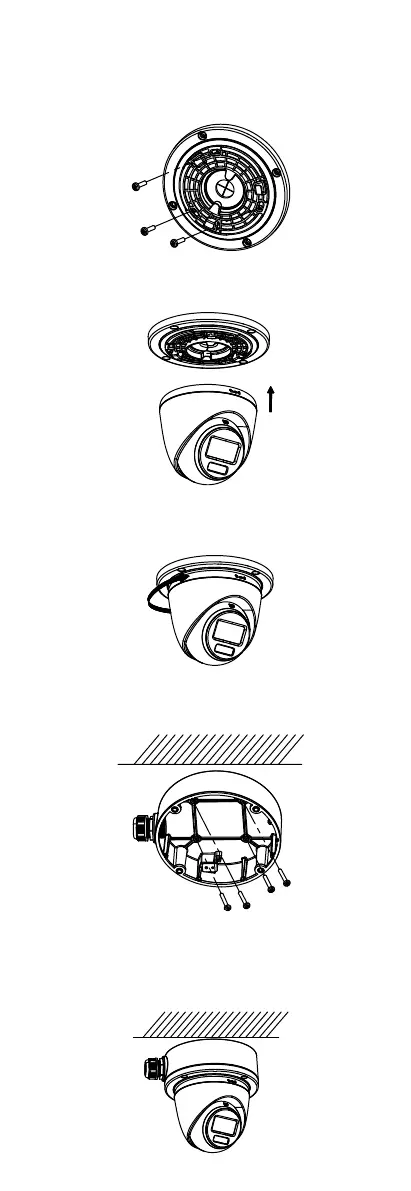

Figure 2-44 Install Gang Box to Junction Box Cover
6. Fit the camera onto the gang box.
Figure 2-45 Fit the Camera
7. Turn the camera clockwise until it snaps into the
gang box.
Figure 2-46 Snap the Camera into the Gang Box
8. Secure the junction box body on the ceiling with
four PA4 × 25 screws.
Figure 2-47 Secure the Junction Box Body
9. Route the cables through the bottom cable hole or
the side cable hole of the junction box and connect
the cables.
10. Combine the junction box cover with its body.
To Next Page
