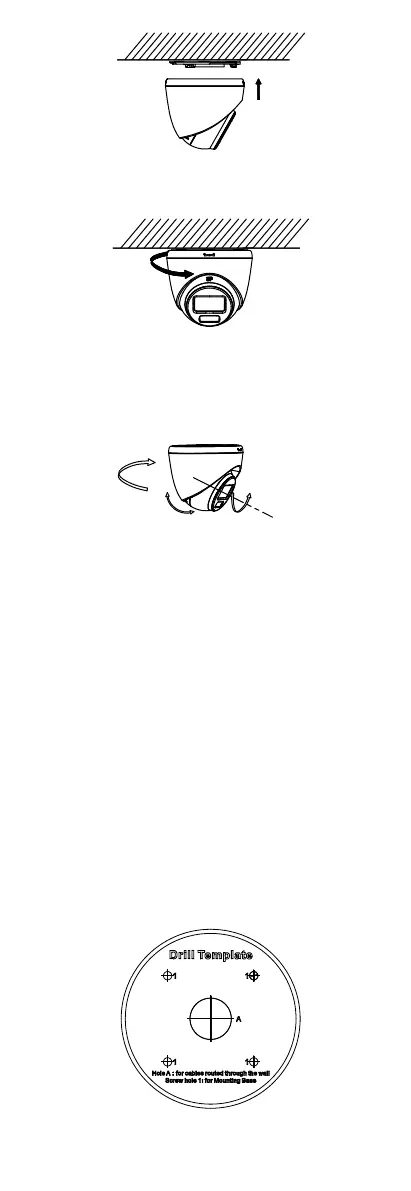

Figure 2-40 Fit the Camera
5. Turn the camera clockwise until it snaps into the
gang box.
Figure 2-41 Snap the Camera into the Gang Box
6. Connect the power cord and video cable.
7. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure
below.
Figure 2-42 3-Axis Adjustment
1). Rotate the enclosure to adjust the pan position
[0° to 360°].
2). Move the main body up and down to adjust the
tilt position [0° to 75°].
3). Rotate the main body to adjust the rotation
position [0° to 360°].
2.5.2 Ceiling Mounting with Junction Box/Inclined
Ceiling Mount
Before you start:
You need to purchase a junction box or inclined
ceiling mount in advance.
Ceiling mounting with junction box and inclined
ceiling mount are similar. Following steps take
junction box as an example.
Steps:
1. Paste the drill template for junction box to the place
where you want to install the camera.
2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
Figure 2-43 Drill Template
