4

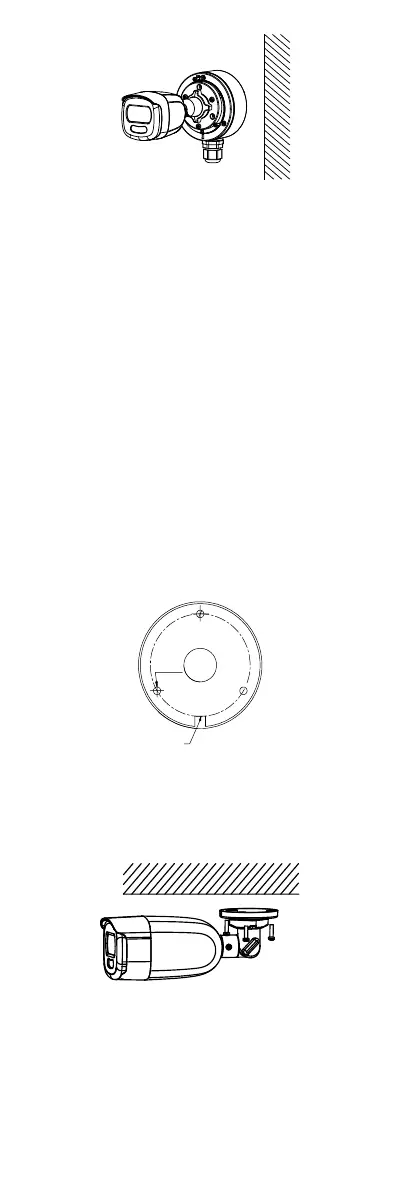

Figure 2-7 Combine Junction Box Cover back to its
Body
8. Repeat the step 5 to 6 of 2.1.1 Ceiling/Wall
Mounting without Junction Box to finish the
installation.
2.2 Installation of Type II Camera
2.2.1 Ceiling/Wall Mounting without Junction Box
Before you start:
The installation of ceiling mounting and wall mounting
are similar. Following takes ceiling mounting as an
example.
Note:
For installation with junction box refers to 2.1.2
Ceiling/Wall Mounting with Junction Box.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
Template
Side Opening
Screw Hole
Ceiling
Outlet
Figure 2-8 Drill Template
3. (Optional) Drill the cable hole, when the cables are
routed through the ceiling.
4. Attach the bracket to the ceiling, and secure the
camera with three PA4 × 25 screws (supplied).
Figure 2-9 Secure the Camera to the Ceiling
5. Connect the cables.
6. Power on the camera to adjust the view angle
according to the figure below.
