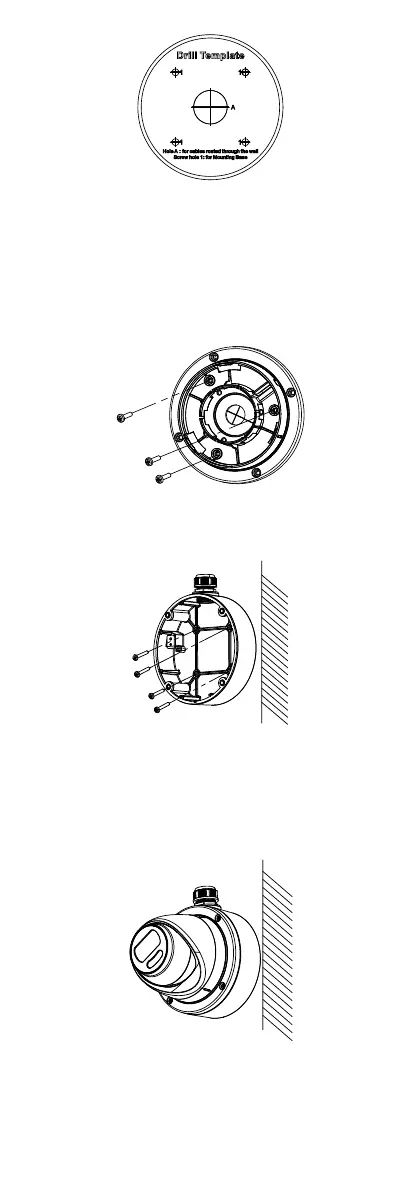

Figure 2-17 Drill Template
Note:
Drill the cable hole, when adopting ceiling outlet to
route the cable.
3. Take apart the junction box, and align the screw
holes of the mounting base with those on the
junction box’s cover.
4. Install the mounting base to the junction box’s cover
with three PM4 screws.
Figure 2-18 Secure Screws on Junction Box’s Cover
5. Secure the junction box’s body on the wall with four
PA4 × 25 screws.
Figure 2-19 Secure Junction Box’s Body
6. Route the cables through the bottom cable hole, or
the side cable hole of the junction box.
7. Combine the junction box’s cover with its body.
8. Repeat the step 7 to 9 of 2.3.1 Ceiling/Wall
Mounting without Junction Box to finish the
installation.
Figure 2-20 Finish Installation
