Make sure the wall is strong enough to withstand
three times the weight of the camera and the mount.
If the product does not function properly, contact
your dealer or the nearest service center. DO NOT
disassemble the camera for repair or maintenance by
yourself.
2.1 Installation of Type I Camera
2.1.1 Ceiling/Wall Mounting Without Junction Box
Before you start:
Ceiling mounting and wall mounting are similar.
Following steps take ceiling mounting as an example.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
3. (Optional) Drill the cable hole, when the cables are
routed through the ceiling.
4. Align the screw holes in the bracket to the ceiling,
and secure the camera with three PA4 × 25 screws
(supplied).

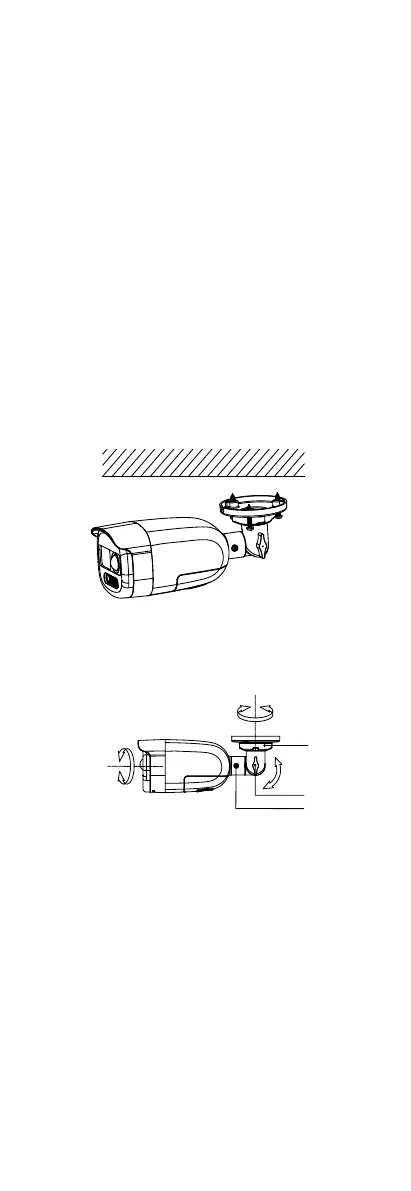

Figure 2-1 Secure Camera to Ceiling
5. Connect the power cord and video cable.
6. Power on the camera to adjust the view angle
according to the figure below.
Rotation Position
[0° to 360°]
Tilt Position
[0° to 180°]
Pan Position
[0° to 360°]
Trim Ring
Figure 2-2 3-Axis Adjustment
1). Loosen the trim ring to adjust the pan position
[0° to 360°].
2). Loosen screw to adjust the tilt position [0° to
180°].
3). Loosen screw to adjust the rotation position
[0° to 360°].
7. Tighten the screws to lock the positions.
2.1.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance.
Ceiling mounting and wall mounting are similar.
Following steps take wall mounting as an example.
Steps:
1. Paste the drill template for junction box to the place
where you want to install the camera.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-2CE12DF3T-PIRXOS and is the answer not in the manual?

HIKVISION DS-2CE12DF3T-PIRXOS Specifications

General IconGeneral
Pan range0 - 360 °
White balanceAuto, Manual
Tilt angle range0 - 180 °
Angle of rotation360 °
Camera shutter speed1/25 - 1/50000 s
Minimum illumination0.0005 lx
Fixed focal length3.6 mm
TypeCCTV security camera
Day/night modeYes
Languages supportEnglish
Number of languages1
Placement supportedOutdoor
Connectivity technologyWired
Built-in HDD-
Form factorBullet
Mounting typeCeiling/wall
Product colorWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67
DC output voltage12
Power source typeDC
Power consumption (max)11.4 W
Sensor typeCMOS
Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90 %
Night vision distance40 m
Total megapixels2 MP
Maximum resolution1920 x 1080 pixels
Image quality adjustmentBrightness, Contrast, Mirror, Sharpness
Noise reduction technology3D noise reduction
Analog signal format systemNTSC, PAL
Supported graphics resolutions1920 x 1080 (HD 1080)
Lens mount interfaceM12
Weight and Dimensions IconWeight and Dimensions
Width82.6 mm
Height77.1 mm
Length213.2 mm
Weight467 g
