HIKVISION DS-2CE12DF3T-PIRXOS User Manual

 To avoid heat accumulation, good ventilation is
required for the operating environment.
 Keep the camera away from liquid while in use for
non-water-proof device.
 While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
Mark Description
Table 0-1 Mark Description
Mark
Description
DC Voltage
1 Introduction
1.1 Product Features
The main features are as follows:
 High performance CMOS sensor
 OSD menu with configurable parameters
 24-hour color image
 Smart light
 3-axis adjustment
 High quality audio with audio over coaxial cable,
built-in mic
 PIR detection
 Built-in speaker
 Three predefined audio files and one custom audio
file are available.
1.2 Overview
1.2.1 Overview of Type I Camera
PIR
Lens
Microphone
Siren
Main Body
Bracket
Power Cord
Video Cable
Line Out

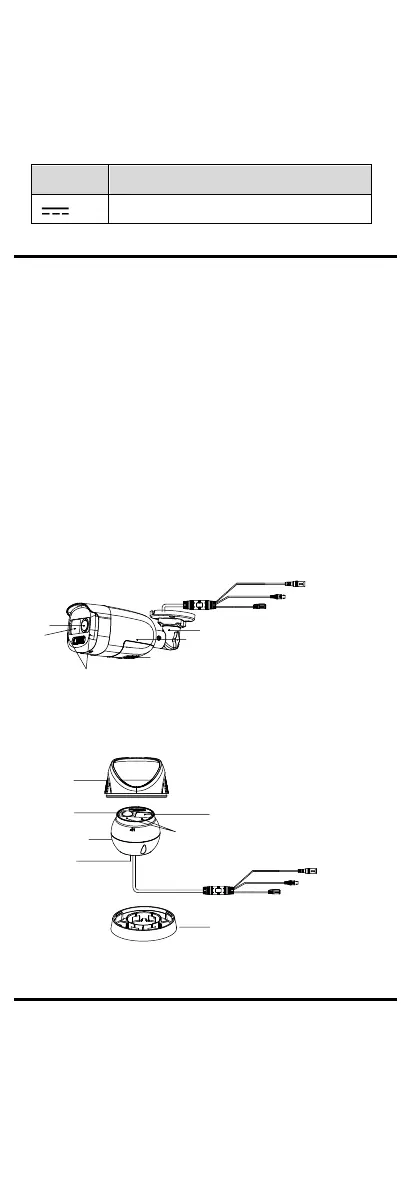

Figure 1-1 Overview of Type I Camera
1.2.2 Overview of Type II Camera
Enclosure
PIR
Main Body
Siren
Lens
Microphone
Mounting Base
Power Cord
Video Cable
Line Out
Figure 1-2 Overview of Type II Camera
2 Installation
Before you start
 Make sure that the device in the package is in good
condition and all the assembly parts are included.
 Make sure that all the related equipment is power-off
during the installation.
 Check the specification of the products for the
installation environment.
 Check whether the power supply is matched with
your power output to avoid damage.

HIKVISION DS-2CE12DF3T-PIRXOS Specifications

General

Pan range	0 - 360 °
White balance	Auto, Manual
Tilt angle range	0 - 180 °
Angle of rotation	360 °
Camera shutter speed	1/25 - 1/50000 s
Minimum illumination	0.0005 lx
Fixed focal length	3.6 mm
Type	CCTV security camera
Day/night mode	Yes
Languages support	English
Number of languages	1
Placement supported	Outdoor
Connectivity technology	Wired
Built-in HDD	-
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Housing material	Metal, Plastic
International Protection (IP) code	IP67
DC output voltage	12
Power source type	DC
Power consumption (max)	11.4 W
Sensor type	CMOS
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Night vision distance	40 m
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Image quality adjustment	Brightness, Contrast, Mirror, Sharpness
Noise reduction technology	3D noise reduction
Analog signal format system	NTSC, PAL
Supported graphics resolutions	1920 x 1080 (HD 1080)
Lens mount interface	M12

Weight and Dimensions

Width	82.6 mm
Height	77.1 mm
Length	213.2 mm
Weight	467 g
