HIKVISION DS-2CE12DF3T-PIRXOS User Manual

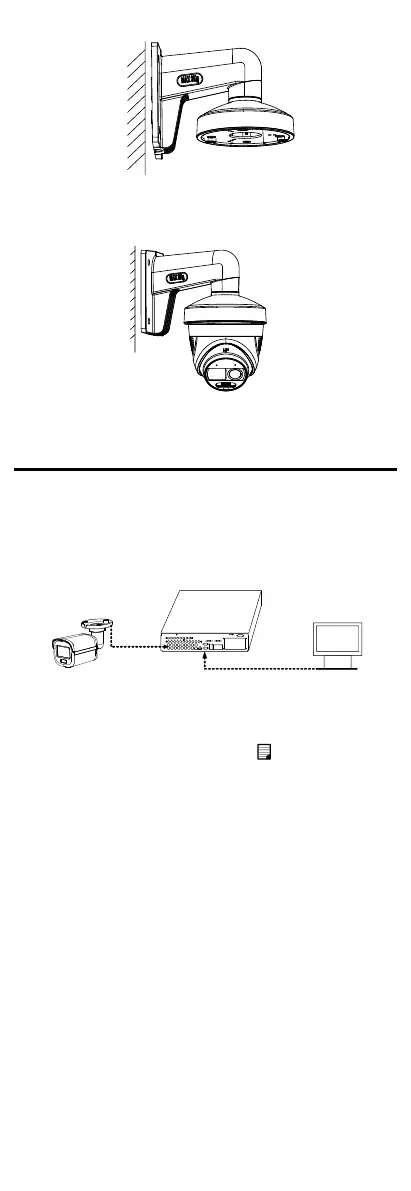

Figure 2-14 Fix Wall Mount
3. Repeat steps 4 to 6 of 2.2.2 Ceiling Mounting with
Junction Box to finish the installation.
Figure 2-15 Finish Installation
3 Menu Description
Please follow the steps below to call the menu.
Note:
The actual display may vary with your camera model.
Steps:
1. Connect the camera with the TVI DVR and the
monitor, as shown in figure 3-1.
Camera
TVI DVR
Monitor
Figure 3-1 Connection
2. Power on the camera, TVI DVR, and monitor to view
the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking button, clicking
Iris+, or calling preset No. 95.

HIKVISION DS-2CE12DF3T-PIRXOS Specifications

General

Pan range	0 - 360 °
White balance	Auto, Manual
Tilt angle range	0 - 180 °
Angle of rotation	360 °
Camera shutter speed	1/25 - 1/50000 s
Minimum illumination	0.0005 lx
Fixed focal length	3.6 mm
Type	CCTV security camera
Day/night mode	Yes
Languages support	English
Number of languages	1
Placement supported	Outdoor
Connectivity technology	Wired
Built-in HDD	-
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Housing material	Metal, Plastic
International Protection (IP) code	IP67
DC output voltage	12
Power source type	DC
Power consumption (max)	11.4 W
Sensor type	CMOS
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Night vision distance	40 m
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Image quality adjustment	Brightness, Contrast, Mirror, Sharpness
Noise reduction technology	3D noise reduction
Analog signal format system	NTSC, PAL
Supported graphics resolutions	1920 x 1080 (HD 1080)
Lens mount interface	M12

Weight and Dimensions

Width	82.6 mm
Height	77.1 mm
Length	213.2 mm
Weight	467 g
