2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
3. (Optional) Drill the cable hole, when the cables are
routed through the ceiling.
4. Secure the camera to ceiling with three PA4 × 25
screws (supplied).

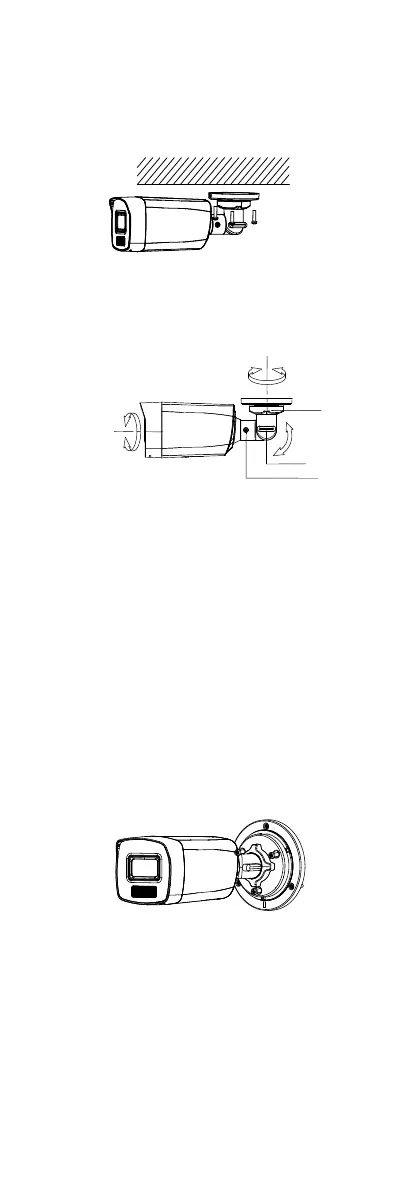

Figure 2-1 Secure Camera to Ceiling
5. Connect the cables.
6. Power on the camera to adjust the view angle
according to the figure below.
Figure 2-2 3-Axis Adjustment
2.1.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance.
Ceiling mounting and wall mounting are similar.
Following steps take wall mounting as an example.
Steps:
1. Paste the drill template for junction box to the
installation location.
2. (Optional) For cement wall, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
3. (Optional) Drill the cable hole, when the cables are
routed through the wall.
4. Take apart the junction box.
5. Fix the camera to the junction box cover with three
PM4 × 10 screws.
Figure 2-3 Fix Camera to Junction Box Cover
6. Secure the junction box body on the wall with three
PA4 × 25 screws (supplied).
