2.1 Ceiling/Wall Mounting without Junction Box
Steps:
1. Disassemble the camera.
1). Rotate the camera to align the notch to one of the
marks.
2). Pry the mounting base to remove the mounting base
with the camera body with a flat object, e.g., a coin.
2. Paste the drill template (supplied) to the place
where you want to install the camera.
3. Drill the screw holes, and the cable hole (optional)
in the ceiling/wall according to the drill template.

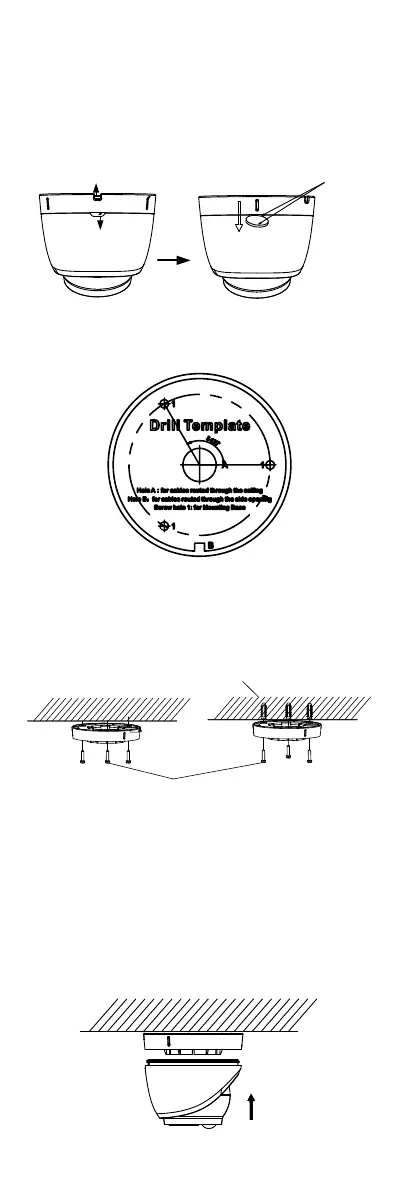

Figure 2-1 Drill Template
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable
4. Attach the mounting base to the ceiling/wall, and
secure them with supplied screws
Expansion Bolts
Fixing Screws
Figure 2-2 Attach the Mounting Base to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden wall/ceiling,
self-tapping screws are required.
5. Route the cables through the cable hole, or the side
opening.
6. Align the camera with the mounting base, and
secure the camera on the mounting base.
Figure 2-3 Secure the Camera with Mounting Base
