HIKVISION DS-2CE16D8T-IT3 User Manual

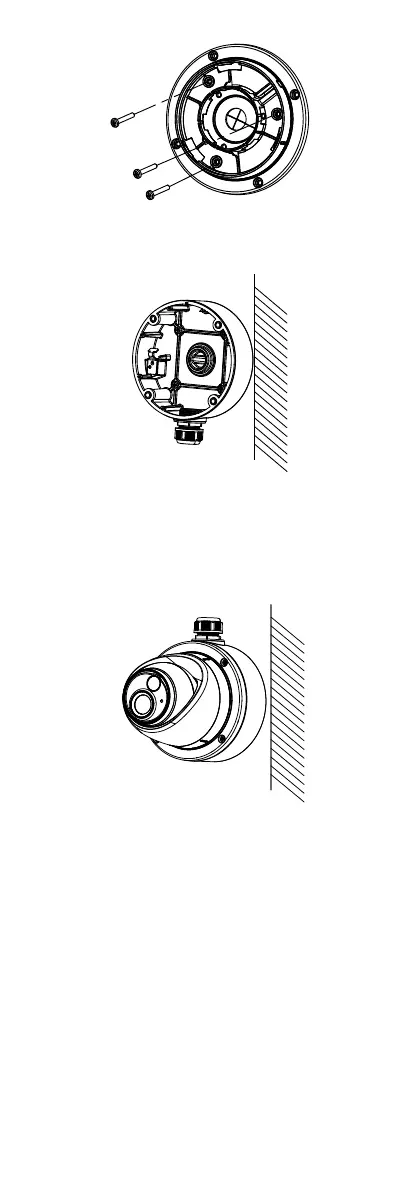

Figure 2-10 Install Turret Camera’s Mounting Base
5. Secure the junction box’s body with supplied screws
on the ceiling/wall.
Figure 2-11 Install the Junction Box’ Camera Body on
Ceiling/Wall
6. Combine the junction box’s cover with the junction
box’s body.
7. Repeat steps 5 to 8 of 2.1.1 Ceiling/Wall Mounting
without Junction Box to install the camera to the
junction box.
Figure 2-12 Fix the Camera to the Junction Box
2.4 Wall Mounting
Before you start:
You need to purchase a wall mount separately.
Steps:
1. Drill four screw holes in the wall according to the
holes of the mount.
2. Install the mount to the wall by aligning the four
screw holes of the bracket with expansion screws on
the wall.
3. Secure the mount with four hex nuts and washers.

HIKVISION DS-2CE16D8T-IT3 Specifications

General

Brand	HIKVISION
Model	DS-2CE16D8T-IT3
Category	Security Camera
Language	English
