4. Connect the corresponding cables.
5. Adjust the camera according to Figure 2-3 to get an
optimum angle.
1). Loosen the P screw to adjust the pan direction
[0°~360°]. Tighten the screw after completing
the adjustment.
2). Loosen the T screw to adjust the tilt direction
[0°~90°]. Tighten the screw after completing the
adjustment.
3). Loosen the R screw and rotate the camera
[0°~360°] to adjust the lens to the surveillance
angle. Tighten the screw after completing the
adjustment.
P Screw
T Screw
R Screw
Tilt Position Range
[0°-90°]
Pan Position Range
[0°-360°]
Rotation Position Range
[0°-360°]

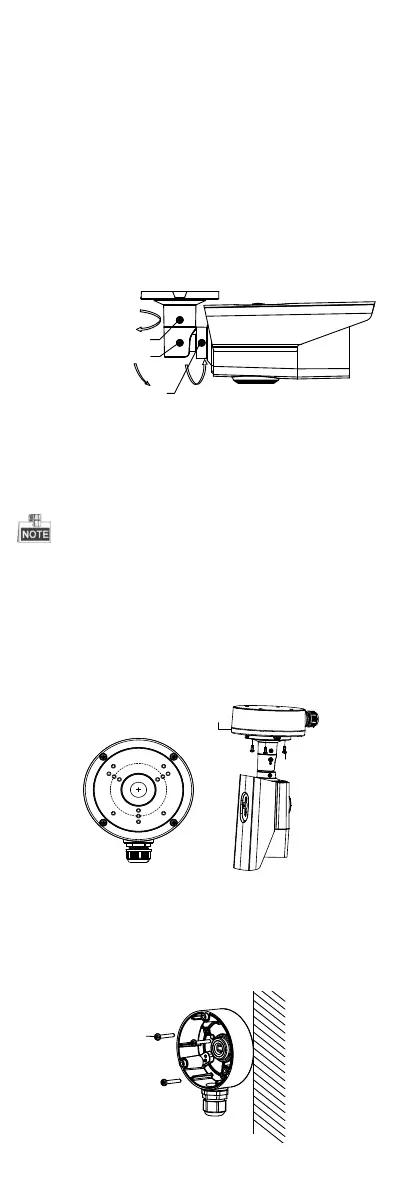

Figure 2-3 3-axis Adjustment
2.1.2 Ceiling/Wall Mounting with Gang Box
You need to purchase a gang box separately if you adopt celling
mounting.
Steps:
1. Take apart the gang box and align the screw holes of
the bullet camera and the gang box cover.
2. Route the cables through the cable hole of gang box
and fix the camera with the gang box cover with the
supplied screws, as shown in Figure 2-4.
Figure 2-4 Fix the Camera with the Gang Box
3. Drill the screw holes in the ceiling/wall according to
the supplied drill template.
4. Hammer the supplied screws into the screw holes to
fix the gang box to the ceiling/wall.
Figure 2-5 Fix the Camera to the Ceiling
To Next Page
