Steps:
1. Paste the junction box’s drill template on the
ceiling.
2. Drill screw holes and the cable hole (optional) in the
ceiling according to the holes of the drill template.

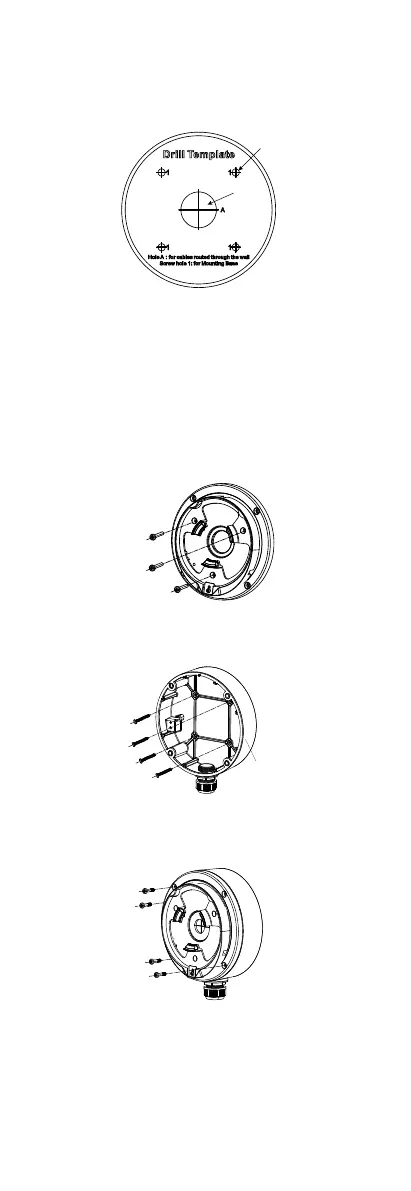

Figure 2-12 Drill Template of the Junction Box
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
3. Refer to step 3 of 2.2.1 Ceiling Mounting without
Junction Box to take out the camera’s main body.
4. Take apart the junction box, and align the screw
holes of the camera with those on the junction
box’s cover.
5. Fix the camera’s mounting base on the junction
box’s cover with three PM4 × 10 screws.
Figure 2-13 Secure Screws on Junction Box’s Cover
6. Secure the junction box’s body on the ceiling with
four PA4 × 25 screws.
Figure 2-14 Secure the Junction Box’s Body on Ceiling
7. Combine the junction box cover with its body by
tightening four screws on junction box’s cover.
Figure 2-15 Fix the Junction Box
8. Repeat steps 5 to 9 of 2.2.1 Ceiling Mounting
without Junction Box to complete the installation.
