Keep the camera away from liquid while in use for
non-water-proof device.
While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
Mark Description
Table 0-1 Mark Description
1 Introduction
1.1 Product Features
The main features are as follows:
High performance CMOS sensor
Auto white balance
Smart IR
3-Axis Adjustment
1.2 Overview
Camera models without F refer to TVI cameras and
those with F refer to 4 in 1 video output cameras.
1.2.1 Overview of Type I Camera
Mounting Base
Clip Plate
Main Body
Enclosure
Video Cable
Power Cord

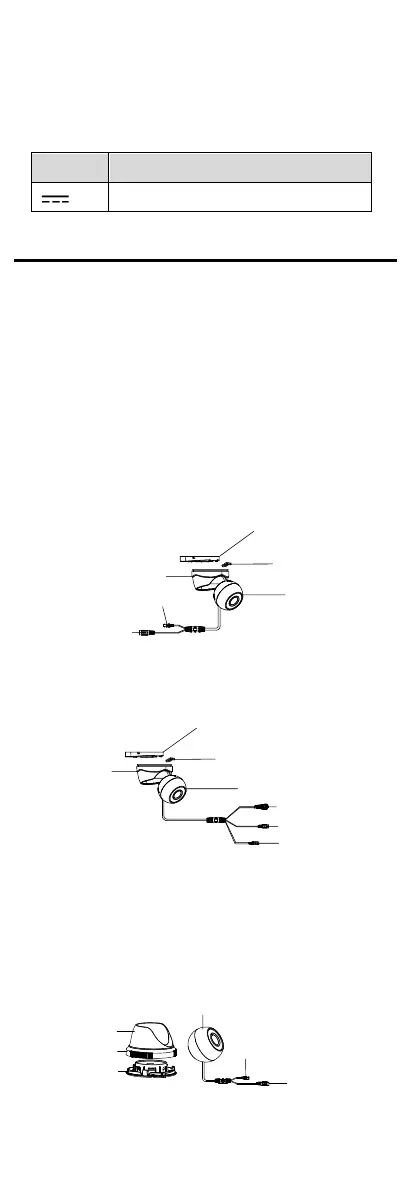

Figure 1-1 Overview of Type I Camera (without F)
Note:
This camera is TVI only.
DC12VIN
Mounting Base
Clip Plate
Main Body
Switch Button
Power Cord
Video Cable
Enclosure
Figure 1-2 Overview of Type I Camera (with F)
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
1.2.2 Overview of Type II Camera
Enclosure
Trim Ring
Mounting Base
Main Body
Video Cable
Power Cord
Figure 1-3 Overview of Type II Camera (without F)
Note:
This camera is TVI only.
