1.2.5 Overview of Type V Camera
DC12 VIN
Mounting Base
Clip Plate
Main Body
Switch Button
Power Cord
Video Cable
Enclosure

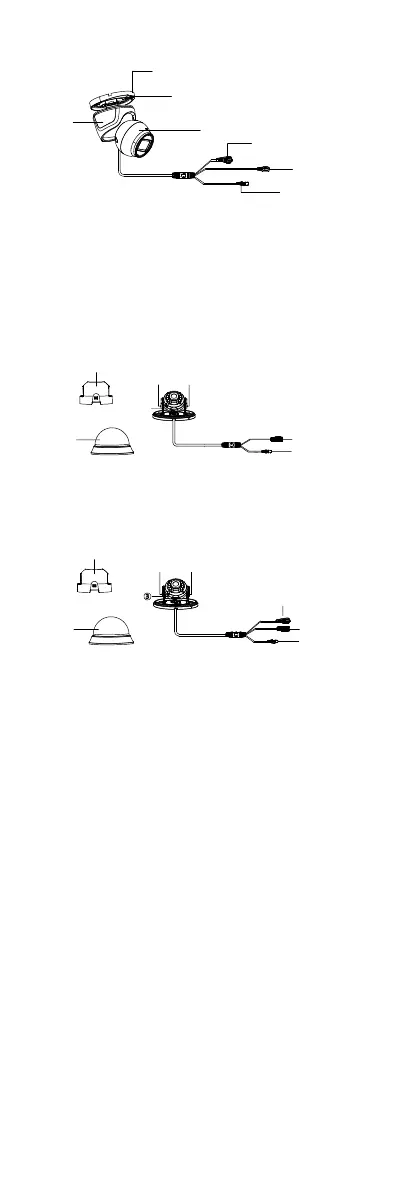

Figure 1-8 Overview of Type V Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
1.2.6 Overview of Type VI Camera
Black Liner
Bubble
Adjusting Screws
IR Zoom Camera
Module
Power Cord
Video Cable
Figure 1-9 Overview of Type VI Camera (without F)
Note:
This camera is TVI only.
Black Liner
Adjusting Screws
Bubble
Switch Button
Power Cord
Video Cable
Figure 1-10 Overview of Type VI Camera (with F)
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
