Steps:
1. Paste the drill template to the celling.
2. Drill screw holes and the cable hole (optional) on the
ceiling according to the supplied drill template.

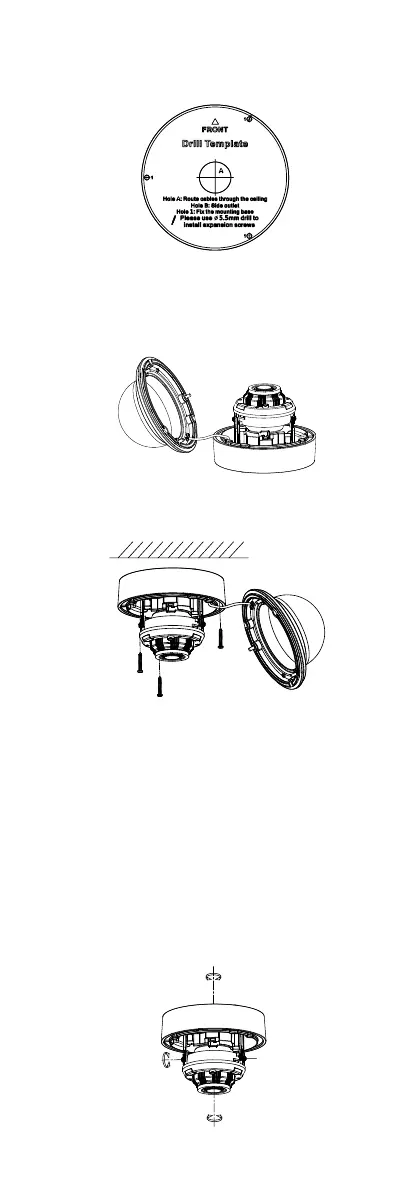

Figure 2-7 The Drill Template
Note:
Drill the cable hole (hole A) when adopting the ceiling
outlet to route the cable.
3. Loosen the screws on the bubble of the dome camera
to remove the bubble.
Figure 2-8 Remove the Bubble and the Black Liner
4. Attach the back box of camera to the ceiling and
secure them with supplied screws.
Figure 2-9 Attach the Back Box
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement ceiling, expansion bolts are required to
fix the camera. For wooden ceiling, self-tapping
screws are required.
5. Route the cables through the cable hole, or the side
opening.
6. Connect the corresponding cables, such as power
cord, and video cable.
7. Power on the camera to check whether the image on
the monitor is gotten from the optimum angle. If not,
adjust the camera according to the figure below to get
an optimum angle.
to 355°
to 355°
to 75°
Figure 2-10 3-Axis Adjustment
